Brand:TAISHANYUN
Model:PGB-003
MOQ:2000 Square Met
1. Specification:
1)Pattern: Aluminum Foil Backing
2) Material: good quality paper-faced gypsum board

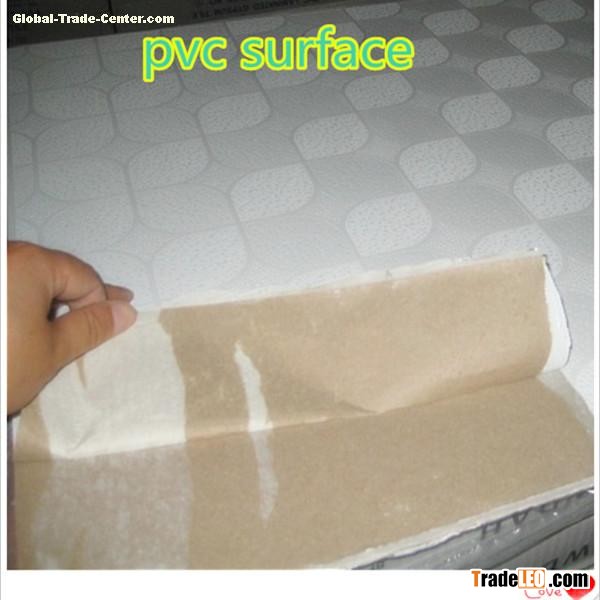

3) Surface Disposal: imported PVC FILM
4) Back: aluminium foil
5) Thickness: 7. 5mm, 8. 0mm, 8. 5mm, 9. 0mm, 9. 5mm
6) Designs: assorted designs available
7) Installation: match with ceiling t-bar
2. Function:
a).Environment protection product: Adopting natural gypsum material without any harmful material.
b).Non-flammable B1, in accordance with Chinese standard GB8624-1997
c).Heat retaining power
d).Sound insulating: effectively solve sound insulation and fire proof.
e).Not deforming, not cracking: keeping integrity and sound insulation for long under normal changes of.
f).Small expansion: Little coefficient of expansion, deforming under normal temperature.
g).Light weight, convenient to transport.
h).Special breathing performance, comfortable to live in.
I).Sunken proof. .non-dust, Easy clean. .good light reflection. Corrosion resistant
3. Technical index
| ITEMS | INDEX | REMARKS |
|
(kg/m2) Weight per sqm | Thickness Common board Fire-proof board 9.5 ≤8.5 ≤8.5 12 ≤10.5 ≤10.5 | GB/T9775-19 |
| Fiexure Supporting span | Thickness Fibre //Fibre 9.5 --- --- | GB/T9775-19 |
| Breaking strength (d-thickness of board) | Thickness Fibre // Fibre 9.5 ≥501 ≥193 12 ≥659 ≥261 | GB/T9775-19 |
| Fire-resistance limit | CommonGypsum board 5-10 min Fire-proof gypsum board ≥30min | GB/T9775-19 |
| Combustion property | Non-combustive Material | According to GB5464 |
| Moisture content | 2% | |
| Thermal conductivity W/m.°C | 0.167-0.18 | |
| Sound insulation Property(db) | Thickness Sound insulation index 9.5 26 12 28 | |
| Nailholding strength (kg/cm2)
| Thickness Nailholding strength 9.5 12 12 20 | ANST/ASTM |
