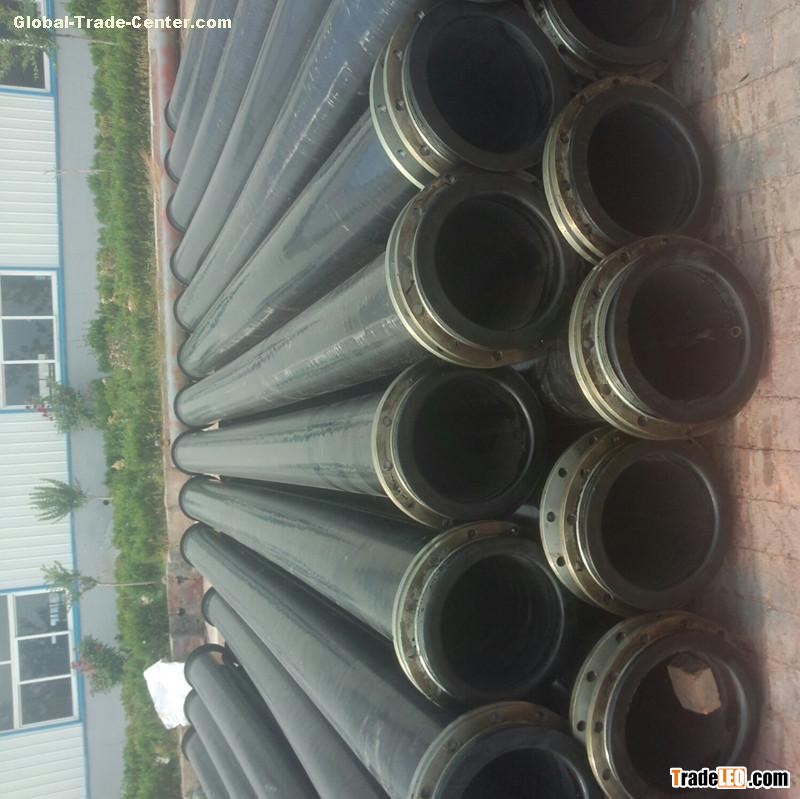

Product Name：UHMWPE Pipe

Size: DN30-DN1200mm, Length :depand on orderThickness:8-50mm

Certification: ISO,CE,SGS,ROHS

Working temperature: -265 degrees to 85 degrees

Working pressure: 0.6 Mpa-2.5Mpa

Connection: Steel Flange or welding

Characteristic: Roughness:0.00022,Elongation:≥350%,Coefficient of friction:0.0084

UHMWPE pipe : DN 30 to DN 1200
UHMWPE rods: DN30 to DN180
UHMWPE plates: Wt10mm to WT 200mm

UHMWPE lined steel pipe:DN 30 TO 1200

UHMWPE Pipe Main Characteristics:
1.Extremely high wear resistance;
The wear resistance of uhmwpe pipe is 6.6 times higher than normal alloy steel, 27.3 times that of stainless steel, 4-7 times 17.9 times that of phenolic resin,6. 4 times that of polyethylene
2.High impact resistance: It won't damage by Cantilever beam impact test according to GB1843 standards
3.High corrosion resistance: The uhmwpe pipe can withstand hydrochloric acid with less than 80% concentration
4.High-pressuer resistance: The working pressure of uhmwpe pipe is between 0.2Mpa to 4.0Mpa
5.Good self-lubrication: The self-lubrication of uhmwpe pipe is better than steel or brass with oil
6.The unique resistance to low temperature:The uhmwpe pipe can be used within -269 to 80 degrees Celsius.
7.Not easy to form dirt: The uhmwpe pipe can't form dirt in the medium with PH value of 9 or above
8.Long life-span:The uhmwpe pipe can maintain more than 70% mechanical properties after it is buried and used for 50 years.
9.Easy installation:The weight of unit length of UHMWPE pipe is only one-eighth of the steel pipe, it is possible whether it is welded or connected by flange

UHMWPE Pipe Application Fields:

dredging pipe, slurry pipes for hydrotransport,
mineral sands pipelines, mine tailings pipelines, mine concentrate pipeline and waste water and pipelines, conveyance iron ore slurry, coal / cement slurry and slurry transportation for mines
and metallurgy, thermal power plant, etc

about us

1. Dragon is certified by ISO 9001, ISO 14001 and OHSAS 18001, CE, SGS inspection is acceptable.

2.14 years experiences in production and R&D of UHMWPE pipes, plates and rods
3.20 years of service in mining & dredging
4.10 years of experience in exporting

Equipment & technology

Dragon has 24 UHMWPE pipe production lines, the biggest UHMWPE pipe manufacturer with self-owned lab

Dragon UHMWPE pipes flanges are not welded on the pipe, it is made from the pipe itself by semi-automatic flanging machine.

Service

stable product quality , supply, the good faith management

Dragon also has stock pipe and fittings for urgent orders, also to reduce small order cost.

Packing&delivery

Packaging Details: standard export sea worthy packing, loaded in containers

Delivery Detail: 20 working days
