Brand:iprefabhouse
Model:VH_K002_000024
MOQ:2 Sets
Description
This medium one layer movable pre-built steel construction total area is 99.37 sq.m.(1069.24 sq.ft.) with 6 rooms.It is used as a villa,dwelling,shop,office,dormitory,restaurant,apartment,garden studio.It can be installed with 4 - 5 construction workers in 5 - 7 days.You also can customize its area size, appearance and layout base on this house,and this building can be used normally at lease 20 years without any maintenance.for more informations,you can browse our website:iprefabhouse.com
House's Show

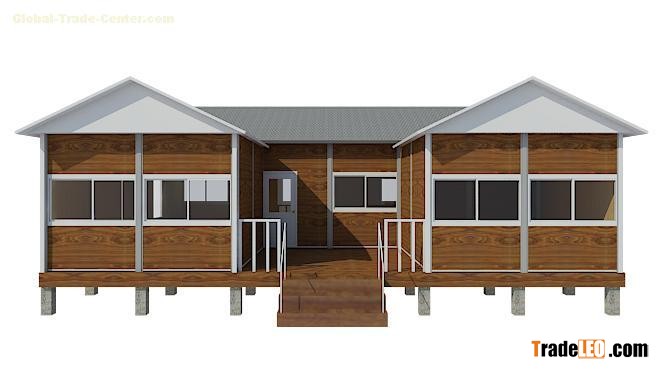

front side picture of the medium-sized single floor pre-assembled light steel building
back side picture of the medium-sized single floor pre-assembled light steel building
left side picture of the medium-sized single floor pre-assembled light steel building
left side picture of the medium-sized single floor pre-assembled light steel building
right side picture of the medium-sized single floor pre-assembled light steel building
right side picture of the medium-sized single floor pre-assembled light steel building
bird view picture of the medium-sized single floor pre-assembled light steel building
Details of Building
| Basic Features | Stories: 1 |
| Living rooms: 1 | |
| Bedrooms: 3 | |
| Bathrooms: 2 | |
| Installation Infos | Construction Workers: 4 - 5 |
| Installation Time(days): 5 - 7 | |
| Dimension | Height: 4.37 m |
| Width: 10.92 m | |
| Depth: 9.10 m | |
| Area | Total Square Meter: 99.37 sq.m. |
| Total Square Foot: 1069.24 sq.ft. | |
| Technical Parameters | Bearing Capacity : 30kg/sq.m. |
| Wind Loading Capacity: 0.45KN/sq.m. | |
| Fireproof Endurance Rating: A | |
| Temperature Resistance: -20 ~ 50 degrees Celsius | |
| base Materials | frame: Steel |
| Wall: Sandwith Panel(Glass Wool) |
Main Material List
|
Square Hollow Sections 80mm x 80mm x 2mm |
Sandwich Panel 1790mm x 950mm x 50mm |
|
Parallel Flange Channel 140mm x 58mm x 6mm |
Strut channel 80mm x 35mm x 15mm |
Product Advantage
- Speed up construction time, lower the labour costs.
- The mechanization used in prefab house ensures precise conformity to building code standards and greater quality assurance.
- Change size and layout of prefab houses as you wish at anytime.
- Can be completely disassembled, transported and reinstalled.
- Less wasted materials during installation.
