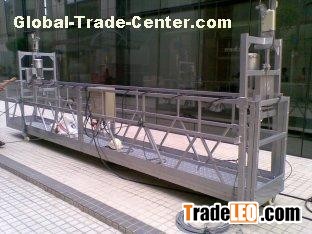

Moveable End Stirrup Suspended Working Platform ZLP630 ZLP630 ZLP630

Descrition:

Special Suspended Platform, also called Special Temporary Access Equipment, is a mobile modular gantry specially designed to meet specific tasks and requirements.
These include: U Type Suspended Platform, Exterior Suspended Platform, Pin-style Platfrom, Moveable End Stirrup Platform, Circle Platform, Gondola, Suspended Chair, Chimney Suspended Platform, and Double Deck Platform.

Applications:

–construction and maintenance work for the building of various profiles
–used for cleaning, decorating, coating on the exterior walls of high buildings
–ideal for construction work in the difficult to access areas, such as chimney,
boiler, barn and pit, etc.

Specifications:


Type				ZLP500	ZLP630	ZLP800	ZLP1000
Rated Capacity				500kg	630kg	800kg	1000kg
Rated Lifting Speed				9-11m/min	9-11m/min	8-10m/min	8-10m/min
Wire Rope Diameter				8.3mm	8.3mm	8.6mm	8.6mm
Hoist	Type			LTD5	LTD6.3	LTD8	LTD10
	Rated Lifting Force			4.9kN	6.17kN	7.84kN	9.8kN
	Motor		Power	1.1kW×2	1.5kW×2	2.2kW×2	3.0kW×2
			Voltage	380V	380V	380V	380V
			Frequency	50Hz	50Hz	50Hz	50Hz
			Rotation Speed	1420rpm	1420rpm	1420rpm	1420rpm
			Brake Torque	15Nm	15Nm	30Nm	30Nm
Safety Lock	Type			LSB30II	LSB30II Contact Infomation Send Inquiry Company name:Jiangsu Shenxi Construction Machinery Co., Ltd. Status:[Offline] [Send message] [Chat] Business contact:Dylan Cao (Ms.) Telphone: Mobile: Fax: Area: Caribbean Region-Bermuda Address:121 Furong Yi Road, Xishan District, Zip:214000
