Detailed Product Description

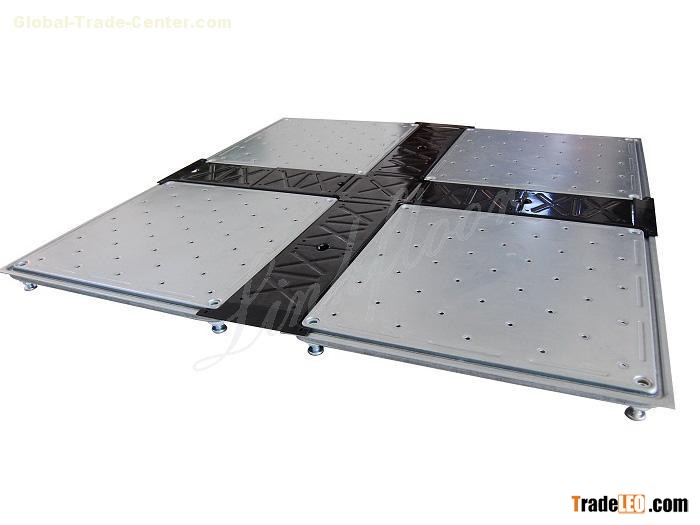

Rivated Hollow Steel Raised Floor with Slots-508 consists of four key pieces including Unipanel, base Connector, Central Cap, Flank Cap, and Pedestal. The access floor systems are aligned in a grid format. The vertical and horizontal edges of each panel have grooves measuring 12mm deep, where flank caps are placed at panel level to store the electrical wiring. A central cap is also placed at panel level at the corners of each panel. The bottom of the central and flank caps are lined with vinyl tape to provide for cushioning against the steel panels.

nnecttype="rect" o:extrusionok="f">

TECHNICAL SPECIFICATION

Steel Raised floor Specifications

Module Set

Module Set size: 600mm×600mm=1 UniPanel + 1 base Connector + 1 Central Cap + 4 Flank Caps

System height: 40mm-150mm

Main Components of Raised Flooring:

Unipanel

Size: 500mm×500mm

Thickness: 25mm

Top and bottom plate of panel:

Galvanized steel

Steel, corrosion protection with powder coating

Steel, corrosion protection with electro-deposition

Riveted structure that is high strength and light weight

Edges: 4mm recession, 12mm width at panel borders

Concave: 7mm width, 6mm depth for locking caps

Pedestals: Galvanized steel, fixed at four corners. Assembled to system's required height

base connector: Galvanized steel. Used to connect UniPanel's pedestal, and automatically form the standard-distance cable trenches

Central cap: Size: 180mm×180mm

2mm thick steel, corrosion protection by powder coating or electro-deposition. Re-enforced ribs Installed at the intersection of the cable trenches.

Flank cap: Size: 208×136mm

2mm thick steel, corrosion protection by powder coating or electro-deposition. Re-enforced ribs to install on the cable trenches.
