Detailed Product Description

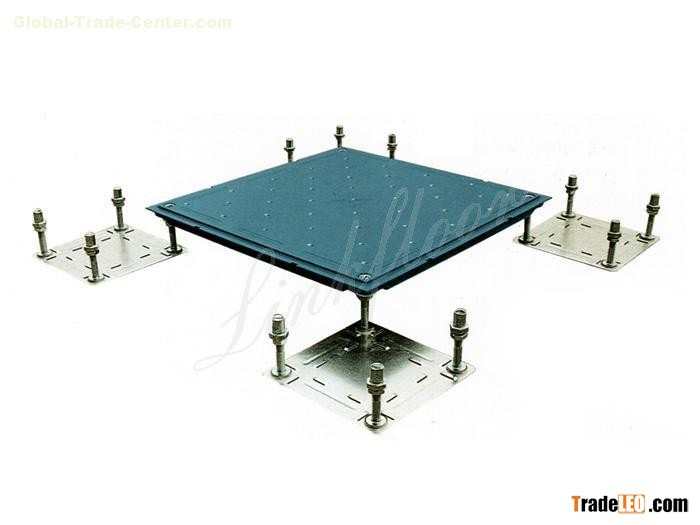

Rivated Hollow Steel Raised Foor with Flat Covers-507 is composed of Unipanel, base Connector, Central Cap, Flank Cap and pedestal. There is an installation area surrounding the panel with the width of 14mm and height of 3.5mm lower than the panel surface. Each of the false floor has four screw bars. base connetor is used to connect the area between panels laid out by panel, central cap and flank cap. The metal slots can be installed under the cap. Each of the corner is supported independently and slot cover board is paved evenly. Wires can be pulled out or socket can be installed at any point around the panel.

nnecttype="rect" o:extrusionok="f">

TECHNICATIONS

Specifications

Module Set

Module Set size: 600mm×600mm=1 UniPanel + 1 base Connector + 1 Central Cap + 4 Flank Caps

System height: 40mm-150mm

Main Components of data center raised floor

Unipanel

Size: 500mm×500mm

Thickness: 25mm

Top and bottom plate of panel:

Galvanized steel

Steel, corrosion protection with powder coating

Steel, corrosion protection with electro-deposition

Riveted structure that is high strength and light weight

Edges: 3.5mm recession, 14mm width at panel borders

Pedestals: Galvanized steel, fixed at four corners. Assembled to system's required height

base connector: Galvanized steel. Used to connect UniPanel's pedestal, and automatically form the standard-distance cable trenches

Central cap: Size: 196mm×196mm

2mm thick steel, corrosion protection by powder coating or electro-deposition. Re-enforced ribs Installed at the intersection of the cable trenches.

Flank cap: Size: 200×126mm

2mm thick steel, corrosion protection by powder coating or electro-deposition. Re-enforced ribs to install on the cable trench.
