Bare Type Woodcore Raised Floor is composed of panels, pedestals and stringers and screws. The stringers and pedestals are vertically adjustable and are secured with screws, forming the stable bottom bearing. The computer room floorings are then place on the grid which is formed when connecting the stringers with vinyl trim.

Woodcore raised floor description

A high density wood core, available in a range of thickness 28mm -38mm. Each praised computer flooring is a 600mm by 600mm square shape. It has 3 layers, consisting of a base, a wood-core and a walking surface. The walking surface is galvanized steel. The bottom side also is the galvanized steel sheet. The panel edges are laminated with self-extinguishing, unbreakable black vinyl trim. This structure protects the core from any damage. This complex structure system can provide excellent electrical continuity because its steel base and pedestals allow for a smooth flow of electricity.

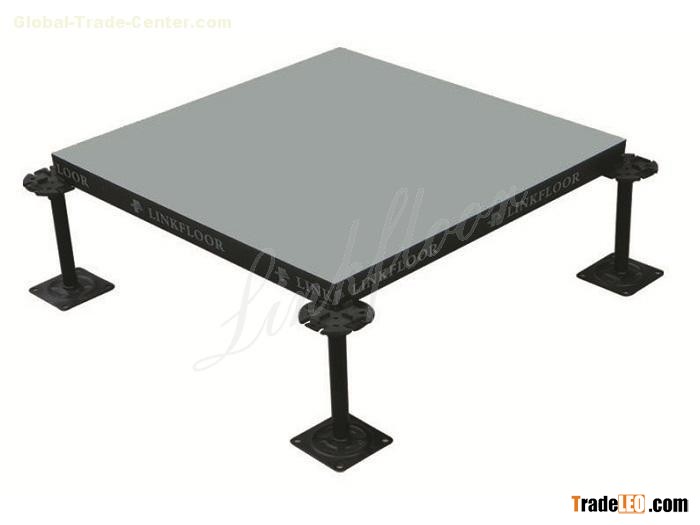

Bare Type Woodcore Raised Floor (WP-B)

Panel size: 600x600mm

Standard Thickness: 28mm, 38mm(without top finish)

Top finish: Aluminum foil, Galvanized steel sheet , or Coated steel sheet

Bottom finish: Aluminum foil, Galvanized steel sheet , Coated steel sheet
