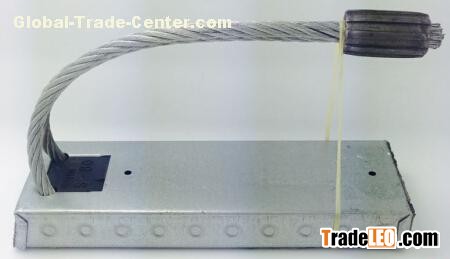

| ABS Connector Box Loop | ||||||||
| Simply fix to formwork and when ready on site the flexible folded wires can be pulled out and a connection made | ||||||||
| High Strength Galvanized Steel Wire Rope | ||||||||
| Galvanized Steel Box | ||||||||
| Coloured coded plastic Clip | ||||||||
| Material:1870Mpa wire rope,zinc plated | ||||||||
| Spec | Dimensions(mm) | Color Clip | ||||||
| a | b | c | d | L | XL | B |
| |
| Vs-80 | 20 | 50 | 160 | 3 | 212 | 80 | 60 | Black |
| Vs-100 | 20 | 50 | 160 | 3 | 212 | 100 | 65 | White |
| Vs-120 | 20 | 50 | 160 | 3 | 212 | 120 | 70 | Blue |
