Honeycomb Hollow Sheet Detailed Description

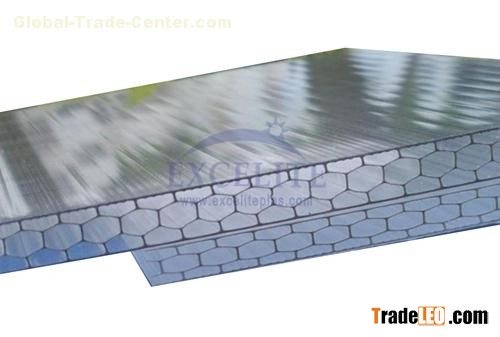

Polycarbonate Honeycomb sheet
Polycarbonate honeycomb sheet (PC Alveolate sheet) is a type of engineering plastic of excellent integration capability, ideal material for roofing panel.
Key specifications:
1) Thickness: 6/8/10mm
2) Standard width:2100mm;Standard Length 5800mm.
3) Weight: 1.3/1.5/1.7kg/m2
4) Colors: clear, blue, transparent, opal, green, bronze,etc.
5) Light transmission :70%--80%
6) Can provide one side or both sides surface UV blocking layer
7) MOQ:1000SQM
8) Lead time:10 days
9) Payment:T/T or L/C at sight
Technical Features:
1)Light weight:4mm-0.85kg/sqm,
5mm- 1.1kg/sqm,6mm-1.3kg/sqm,8mm-1.5kg/sqm,10mm-1.7kg/sqm
2)High impact resistance
3)Good light transmission:70%-80% for clear color different thickness
4)Better heat insulation : Good heat insulation(K value):4mm-4.0W/m2K 6mm-3.6W/ m2K 8mm-3.3W/m2K 10mm-3.0W/m2K
5)UV blocking layer : 50μm ,can filter about 99% ultraviolet radiation in sunshine
6)The minimum bend radii for different thickness with standard size(2100mm*5800mm)
6mm--1050mm,8mm--1400mm,10mm—1750mm
7)Simply processed and installed
Applications:
1)Roofing for swimming pool,shopping malls,commercial streets
2)Sunshade for stadiums and bus stops, gazebo, open-air carport
3)Lighting canopy for corridors, passages and subway entries
4)Flashing for bank ATMs,telephone box, gateways,garages
5)Sound and heat insulation wall for expressways and houses
