Brand:ZIGINTE
Model:K800-10
MOQ:200 Pieces
ZIGINTE,lead a new generation intelligent life
Contents:
1 × Indoor control unit (language: English & Chinese )
1 × Out lense unit
1 × Micro SD card (2GB)
1 × User manual (language: English & Chinese )
1 × Warranty card
1 × Fixed sheet steel
1 × STLDF charger (power adapter &USB data line)
4 × Screws (two pairs ,select one according to the door thickness)
Specification:

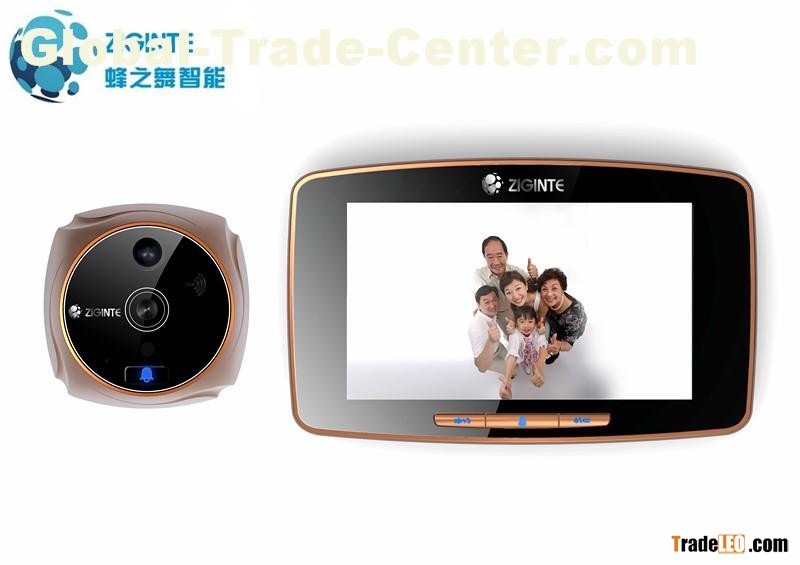

| Model | K800 Gold type( Electronic Door Viewer Peephole) |
| Indoor control unit | 142×88×13.5mm |
| Screen | HD highlighted 5.0''inch LCD |
| Max.Image Resoulation | 1600x1200(2M Pixel) |
| Outdoor lens unit | 61×61×14.1mm |
| View angle | 160 degree |
| Door peephole diameter limits | 12mm ~ 60mm |
| Door thickness limits | 30mm~ 100mm |
| Power source | 1400mAh lithium cell(rechargeable) |
| Working voltage | 3.5V~4.5V |
| Charging | 1.you can charge the battery directly via the Micro USB at the bottom of the host machine 2.you can take out the battery,and charge it via the charger |
_______________________________________________________________________________________________
Describtion:
Intelligent doorbell function
1. When guests approach the door, the doorbell button lights, tell the guest to press it;When guests leave the monitor area,the light goes out.
2. If guests presses the button, the doorbell rings.
3.1 After the ring,if there is no answer (the length of the ring time can be setted), the doorbell will say:sorry, host is away, to leave a message, please press the button again after beep .
3.2 Within 10 seconds if guests press the button again, the doorbell beeps,then records the video message (the video last for 15 seconds defaulted).
3.3 After the video message, the doorbell will say:thank you,if urgent, please press the button again to call the host. Within 10 seconds if guests press the button again, the doorbell will call the host (dials the pre-set number), put through, guests can speak with the host via the doorbell.
Intelligent security function
1. If guests stay before the door for more than 3 seconds without pressing the doorbell button, the indoor button will light and flicker, warning there are guests out of the door.
2. If guest stay before the door for more than 10 seconds (the time can be setted) without pressing the doorbell button, the viewer will take photo for the guest,and store it into the T-card and send a MMS alarm to the host (can be chosen to use or not) and the alarm sounds at the same time (can be chosen to use or not).
3. When guest presses the doorbell button, the viewer takes photo and store it, the indoor bell rings at the same time; the indoor screen lights, shows the guest outdoor; press the MIC button, the host can speak with the guest.
Communication function
1. Indoor-outdoor communication: after guests press the doorbell button, the bell rings, host press the indoor MIC button, can realize indoor-outdoor communication, more safe and fashion.
2. Remote communication: if urgent, guests can press the doorbell button to speak with the host.
Features
1. Support infrared monitoring and infrared night-vision function (within 3m).
2. 5.0’’ HD LCD,touch screen,more convenient.
3. 200 million pixels security wide-angle camera, no omit.
4. Double-battery design,never halt.You can take out the lithium battery, recharge it, another build-in battery can support this machine for a week at the most.
5. Support calendar function
Notice
1. SIM-mode & NO SIM-mode
Only put in a effective SIM-card (charge as a cellphone), can it realize the MMS alarm and remote calls function, but if there is no SIM-card, it can also support all the function besides the MMS alarm and remote calls.
2. Home-mode & Outdoor-mode
Home-mode is defaulted, if you are not at home ,you can shift the mode via the control panel. Under the outdoor-mode, press the doorbell button, the doorbell will directly begins from saying:sorry, host is away, to leave a message, please press the button again after the beep.
