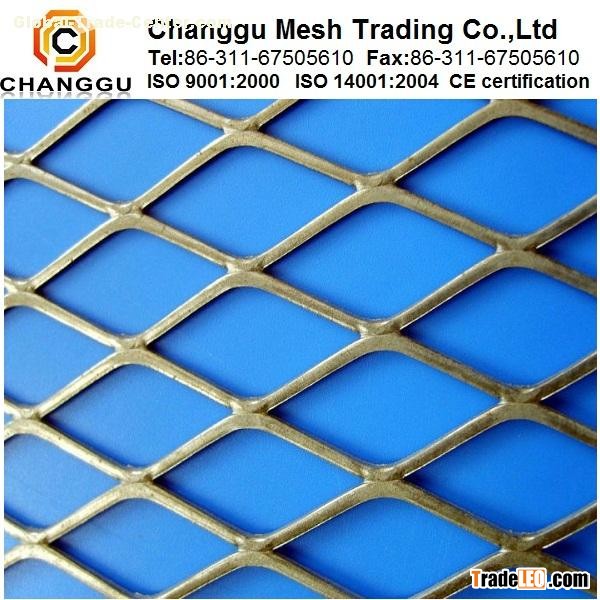

Expanded metal
1. Expanded metal Mesh Materials: Low carbon steel plate, stainless steel plate, aluminum plate,copper plate, nickel plate, Al Mg alloy plates and other metal plate . according to the hole, it is divided to diamond, square, round, triangle, scale hole. it is strong and wear resisting, artistic and tasteful.
Specification List of expanded wire mesh:
| Sheet Thickness | Opening in Width(mm) | Opening in Length(mm) | Stem mm | Roll width mm | Roll Length mm | Weight kg/m 2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
2.Surface treatment of expanded metal mesh : PVC coated, Galvanized, Epoxy resin,anodic oxidation, antirust paint etc.
3.Weaving and characters: Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability.
4.Technology of expanded metal mesh: punching and stretching
5.Hole patterns:Diamond/square,triangle,scale hole..
6.Characters :Expanded metal mesh is strong and wear resisting, lightness in weight and has good ventilation,rodent-resistant.
7.Application Expanded metal mesh can use as protective screen,farm fence,expanded metal
fence,expanded metal grill gate..
8.Ordering Information of expanded metal mesh
SWO:A short diagonal length of the diamomd-shaped hole
LWO:A long diagonal length of the diamomd-shaped hole.
Strand: diamond hole edge.
Bond: Connection at the two wire stems
Thickness: The thickness of the original plate
