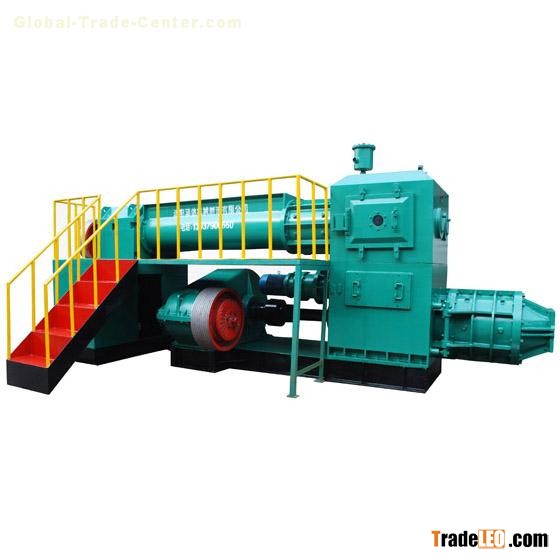

Introduction of automatic JKY series burn clay brick vacuum extruder :
they are applicable forthe production of solid brick,load-bearing perforated brick,and high-rate hollow bricks
with the materials of clay,coal gangue,shale, high-volume fly-ash .urban construction waste,gangue waste,inferior soil.
Brick sample:
Brick Making Process:
Inside kiln:
ON--Site:
Service policy:1. Before sales: 1>the device type
2>for customer training and technical personnel
3>according to customer request, design and manufacture products
4> the company sent engineering and technical personnel to the user scene, planning for the optimal design of the flow field, and the solutions.
2. Medium-sales:1> Acceptance of the product
2> Assist client protocol construction scheme
After-sale
On-site training personnel
Appoint special after-sale service staff ,arrived at the scene guide clients installation and commission.
It is long wear-resisting and long service life for reamer ,the clay cylinder lining ,neck ,outlet , all adopted high antifriction metal material.
Technical data:
| Item |
Measuring unit | 75/75-4.0 | 70/70-4.0 | 60/60-4.0 | 55/55-3.8 | 50/50-3.0 | 45/45-3.0 | 40/40-2.0 | 35/35-1.5 |
|
Production capability |
standard brick packs/h | 20000-26000 | 20000-24000 | 18000-22000 | 16000-20000 | 14000-18000 | 12000-16000 | 10000-14000 | 8000-12000 |
|
Reamer diameter | mm | 750 | 700 | 500 | 500 | 500 | 450 | 400 | 350 |
|
Extruding pressure | MPa | ≤4.0 | ≤4.0 | ≤4.0 | ≤3.8 | ≤3.0 | ≤2.0 | ≤2.0 | ≤1.5 |
|
Forming liquid water content | % | 14-16 | 14-16 | 14~20 | 14~20 | 14~20 | 14~20 | 16~22 | 18~22 |
|
Vacuum | MPa | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 | ≤-0.092 |
| Power | Kw | 110/250/15 | 90/220/15 | 75/160~185/15 | 75/132~160/15 | 55~75/110~132/15 | 55/90~110/15 | 45/75~90/15 | 37/55~75/15 |
