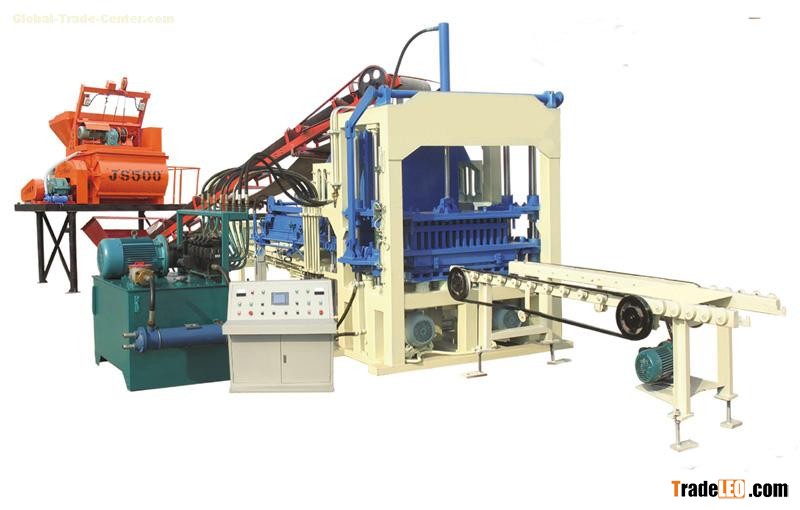

QT4-15C concrete block making machine
1. Main advantages and function of QT4-15C concrete block making machine
1).QT4-15C concrete block maker machine It is a compact machine with electric and hydraulic system.
2).QT4-15C concrete block maker machine Guarantee the machine operate safely, easily and dependablely.
3).QT4-15C concrete block maker machine The concrete ensure the high-density.
4).QT4-15C concrete block maker machine Especially suitable to produce the standard bricks.
5).QT4-15C concrete block maker machine The pallet investment can be saved directly.
6).QT4-15C concrete block maker machine The unique forcing charge system can make use of industrial waster.
2. Main technical parameters of QT4-15C concrete block making machine
| Dimension | 7100*1600*2610mm |
| Rated pressure | 16MPa |
| Main vibration | platform |
| Vibration frequency | 4600r /min |
| Pallet Size | 1020*570mm |
| Molding Cycle | 15-25(s) |
| Overall Power | 27.5kw |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
3. Production capacity of QT4-15C concrete block making machine
| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
| 400x100X200 | 8 | 1440-1680 | 11520 -13440 |
| 400x150X200 | 6 | 1080-1260 | 8640-10080 |
| 400x200X200 | 4 | 720-840 | 5760-6720 |
| 400x250X200 | 3 | 540-630 | 4320-5040 |
| Paver:200x100X60 | 16 | 2880-3360 | 23040-26880 |
| Paver:200x163X60 | 8 | 1440-1680 | 11520-13440 |
