Construction & Decoration
Squeeze Mortar Pump
2016-09-19 10:25  Views:196
Price:0.00 USD/-
Brand:-
Model:DMAR-SGP-1.8/3.0
MOQ:-0 -
Send Inquiry

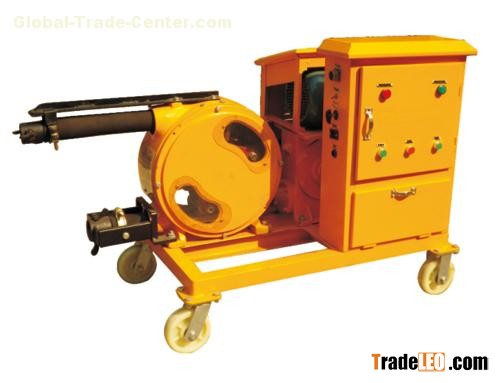

DMAR-SGP-1.8/3.0  Squeeze mortar pump is applicable for pressure grouting to engineering cavities and gaps. With the anchor bolt supporting pressure grouting,tunnel wall filled with construction material,slope protectiom jet grouting,foundation engineering mixing&grouting.
The pump is applicable to highway, bridge, tunnel, mine, construction, reservoir and other projects. Spray the bottom layer and various kind of surface layers for large area wall,
conduct pressure grouting with stretching process after pressurization,mortar conveying, foundation construction pressure grouting, and be used for manufacturing the glass-fiber reinforced cement products in GRC industry. Manufacture large and medium scale concrete prefabricated units.
Technical parameters

Mortar Output (m 3 /h) 0.4,0.6,1.2,1.8 Delivery Pressure  (bar) 1.5
Main Motor Power (kw) 2.2/2.8 Net Weight (kg) 330
Theoretical Dlivery Height (m) 0-30 Dimension (mm) 1400×600×900
Theoretical Dlivery Distance (m) 0-100
