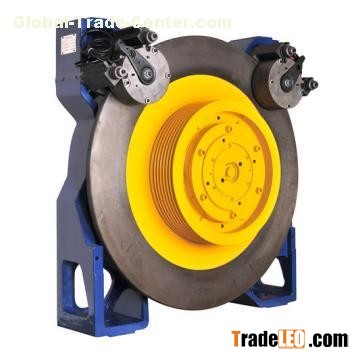

MDD series gearless traction machine
| Voltage | 380V |
| Roping | 2:1 |
| Rope | Single Rope |
| Weight | 470kg |
| Max. Static Load | 4000kg |
| Load | 1350kg-1600kg |
| Speed | 1~1.75 m/s |
| Machine | Motor | Brake | Sheave | ||||||||||||
| Rated Load (kg) | Rated Speed (m/s) | Rotation Speed (r/min) | Rated Torque (Nm) | Pole (P) | Rated Voltage (V) | Rated Current (A) | Rated Power (Kw) | Rated Frequency (Hz) | Type | Current (A) | Brake Power (N) | Voltage (V) | Diameter (mm) | Rope | Cut Angle |
| 1350 | 1 | 89 | 900 | 48 | 380 | 21 | 9 | 35.6 | EM01 | 2 | 4500 | AC220 | 430 | 7x10x13 | 95o |
| 1.5 | 133 | 35 | 13.5 | 53.2 | |||||||||||
| 1.6 | 142 | 35 | 14.4 | 56.8 | |||||||||||
| 1.75 | 155 | 35 | 14.7 | 62 | |||||||||||
| 1600 | 1 | 89 | 1100 | 25.5 | 11 | 35.6 | |||||||||
| 1.5 | 133 | 42.5 | 16.5 | 53.2 | |||||||||||
| 1.6 | 142 | 42.5 | 17.6 | 56.8 | |||||||||||
| 1.75 | 155 | 42.5 | 18.5 | 62 | |||||||||||
