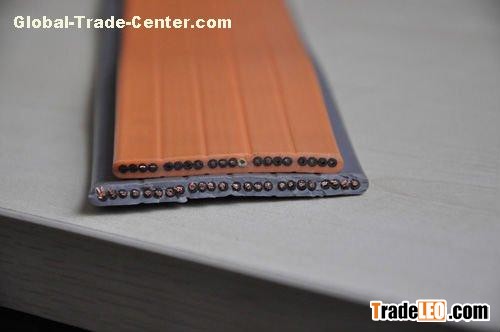

Flat elevator cable

Applications:
As control and signal cable for elevator as well as moving machine parts,its bending radius is smaller compared with round cables due to the closely packed shileded cores or bundles.It can be installed in dry and damp rooms.

Properties:
The outer sheath is extensively resistant to oil and cooling liquid.
stantdards: GB5023.6,IEC60227-6,EN50214
Structure:
Conductor: Fine strands of bare copper wire,
           acc.to VDE0295CLASS 5
Insulation: special PVC
Colour:yellow,white,orange with black number with white digital coding
Bearing:steel rope
Outer sheath: flexible PVC,cold resistance,flame resistance
Colour:grey(RAL7001)
Technical data:
Rated voltage:300/500V
Test voltage: 2500V
Minimum bending radius:0.3m<L<0.6m:
Burning vertically test: GB/T18380.1--2001,
                        IEC60332-1.1 993 test passed
Used under the normal conditions,the temperature of conductor is lower than 70C
Temperature range: -15C to +70C
TVVB( pararell) free suspersion length must not exceed 35 meters ,and the lift speed must not exceed 1.6m/s
TVVB(interwist) free suspension length must not exceed 80 meters ,and the lift speed must not exceed 4m/s
