Brand:-

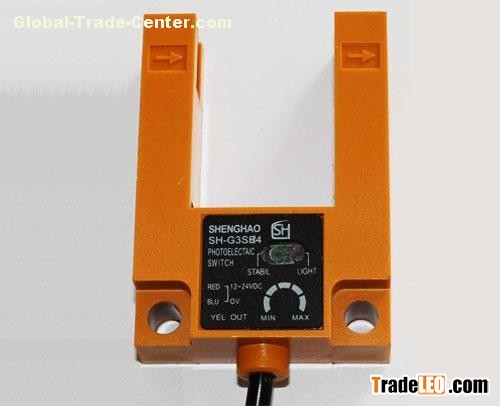

Model:SH-GS3B4
MOQ:-0 -
Send Inquiry
| Model | SH-GS3B4 |
| Output Mode | PNP output |
| Detection Distance（groove width） | 30mm |
| Standard Testing Objects | Opaque more than φ1.5mm |
| Light Source（Wavelength） | IR LED（850-940nm） |
| Supply Voltage | DC12～24V ±10％ Ripple（p-p） ＜10％ |
| Current Consumption | ＜40mA |
| Control Output | Load supply voltage is lower than DC26.4V、load current is lower than 100mA（the remaining voltage is lower than 1V） NPN Open type output Light in: ON/Shading: ON Switch mode |
| Protective Circuit | Power reverse connection protection |
| Response Time | Action＜1ms Reset＜1ms |
| Working Ambient Temperature | Receives illumination: Filament Lamp ≤3,000lx; Sunlight≤10,000lx |
| Ambient Temperature | Work：-25～+55℃、Storage：-40～+70℃（non-freezing, non-condensing） |
| Ambient Humidity | Work：35～85％RH、Storage：35～95％RH （non-condensing） |
| Dielectric Resistance | 20MΩ （DC500V Megger）between whole conductor and the shell |
| Voltage Withstand | AC1,000V 50/60Hz 1min between whole conductor and the shell |
| Vibration（Endurance） | 10～55Hz Amplitude fluctuation 1.5mm 2hs X、Y、Z each direction |
| Impact（Endurance） | 500m/s2 X、Y、Z each direction three times |
| IP Code | IEC Standard IP54 |
| Connection Type | Wire Leads Type（Standard Lead Length 2m／500mm） |
| Indicator Lamp | Action Indicator（Red） |
| Gross Weight | ≈ 200g |
| Wiring Mode | Red：Power Supply +/- Black：Power Supply -/+ Yellow：Output OUT |
