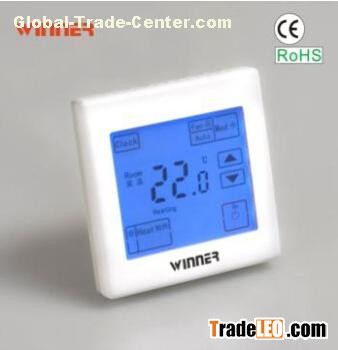

WRT-3510 SERIES

Line voltage, 3 speed fan, heat/cool control, back light, 2 pipe  and 4 pipe fan coil control, optional dry contact output.

Features

○ 2-pipe or 4-pipe heating/cooling available

○ Auto fan with adjustable 3-fan speed.

○ Display shows room temperature simultaneously

○ Display shows the valve on/off status.

○ The highest and lowest set piont can be set.

○ Keep user setting during power loss

○ Switch between ℃ and ℉.

○ 7-Day Programmable for customization

○ Compressor short cycling protection available

○ Dry contact output ,compressor linkage

○ Anti-freezing protection

Technical data

○ Voltage: AC220V±10%  50/60Hz

○ Power load: 3A/5A

○ Setting range: 5°c~35°c   Accuracy: ±0.5°c

○ Ambient temperature: -5~50°c

○ Protective housing: IP21

○ Housing material: PC+ABS

○ Dimensions: 86mm×86mm×15mm    Flush mount

Packing information

Packaging Detail: 84pcs per carton.

Carton:50cm*32cm*30cm .

G.W: about  23kg/CTN
