Brand:Groupeve
Model:-
MOQ:20000 Pieces

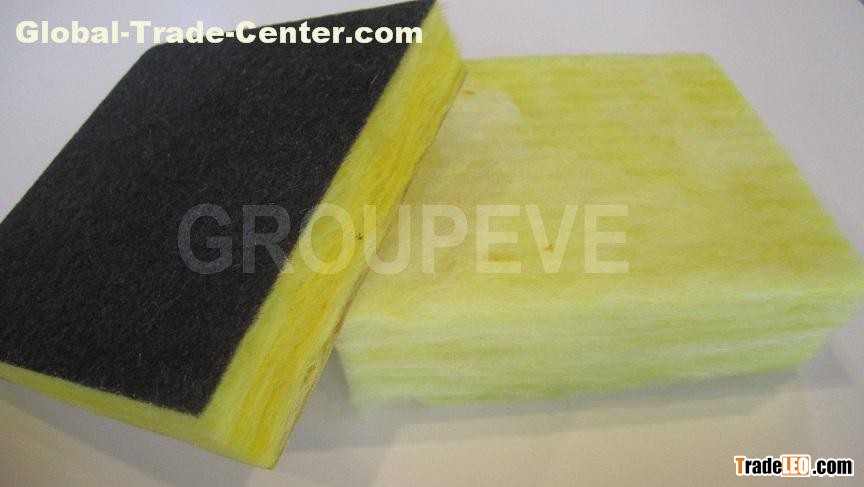

EVE-Fiberglass Insulation Board
Description
EVE-Fiberglass Insulation Board is is made of inorganic fiberglass with a thermosetting resin, formed into flexible, semi-rigid or rigid boards of varying densities. Due to the advantages of lightweight, resilient, corrosion resistant, high thermally efficient, structurally integrated and excellent in acoustical properties, EVE-Fiberglass Insulation Board is widely applied in heat preservation and sound insulation projects. In addition, able to be finished with facing materials like black glass fiber or aluminum foil, EVE-Fiberglass Insulation Board provides a neat and pleasant appearance. So EVE-Fiberglass Insulation Board is used on vessels, equipment, chillers, hot and cold equipment, heating and air conditioning ductwork, acoustical wall panel, specialized ceiling applications, power and process equipment.
Technical data
Specification
| Item | Density(kg/m3) | Thickness(mm) | Width(mm) | Length(mm) |
| EVE-Fiberglass Insulation Board | 24~96 | 20~100 | 600~1200 | 1200~2200 |
Note: EVE-Fiberglass Insulation Board can be manufactured as per your specific dimension and coating style requirement. Our coating styles are listed below in the column Coating Styles for your reference.
Property range
| Item | Units | Value | Standard |
| Average diameter of glass fiber | μm | 5.5 | GB5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Fire resistance |
| Non combustible Grade A | GB 8624-1997 |
| Maximum working temperature | ℃ | ≥250 | GB/T 11835-1988 |
| Coefficient of thermal conductivity | w/m.k | 0.038~0.06 | GB/T 10294-1988 |
| Water repellency | % | ≥98.2 | GB/T 10299-1988 |
| Moister absorption rate | % | ≤5 | GB/T 16401-1986 |
| Acoustic absorptivity | N/A | 2000hz(24kg/m3) | GBJ47-83 |
| Shot content | % | ≤0.3 |
|
