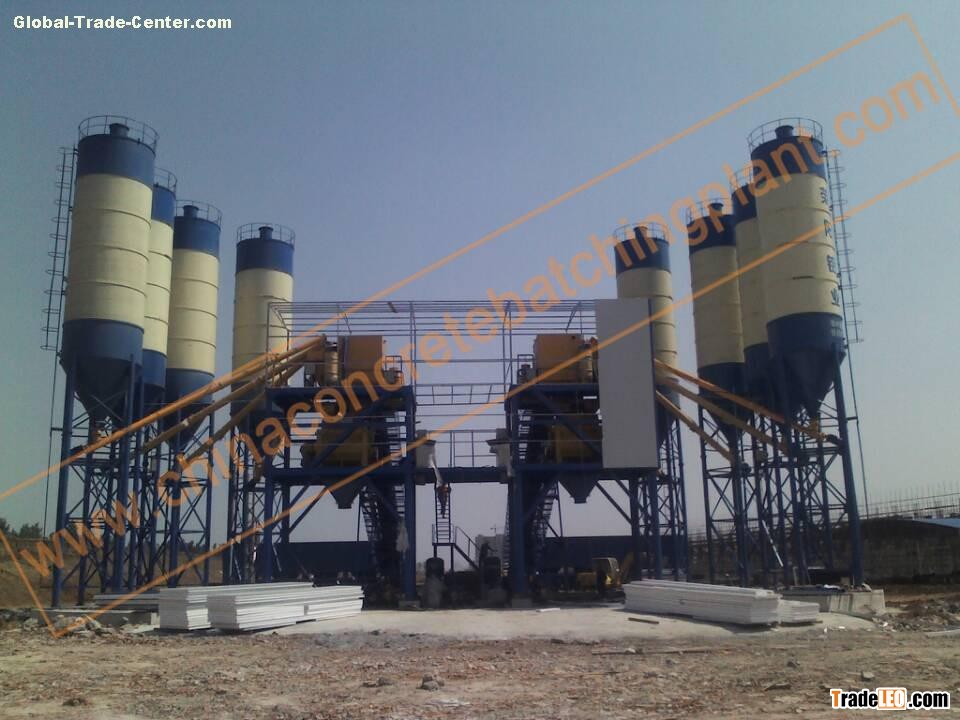

Technical Parameters of HZS120 Concrete Mixing Plant

Capacity: 120 m3/h

Mixing Time: 60S

Max Aggregate Size: 60/80 mm

Discharging Height: 3800 mm

Total Power:    120 KW

Total Weight: 80 Ton

Dimensions: 41600×12700×19400 mm

1. MIXING SYSTEM

Twin Shaft Concrete Mixer: JS2000

Volume: 3200L

Capacity: 2000L

Mixing Blade: 2×9 pcs

Mixing Speed: 23.1 r/min

Mixer Motor: 2×37 kw

Weight: 9200kg

Dimensions: 3810×2480×17100mm

2. AGGREGATE SYSTEM

2.1 Aggregate batcher:  PLD3200

Volume: 4×15m3

Capacity: 192m3/h

Power: 11kw

Weight: 10200 kg

Dimension: 12120×3960×4800mm

2.2 Aggregate belt conveyor: 1 unit

Belt width: 1000 mm

Belt speed: 1.6 m/s

Power of Motor: 22 kw

3.CEMENT SYSTEM (OPTIONAL)

3.1 Cement silo: 4 units

Capacity: 100t×4=400t

Silo Diameter: Φ3000

3.2 Cement Screw Feeder: 4 units

Diameter: Φ273mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m3

Pneumatic Valve: Φ50 mm

Pump: 2×3kw

5. WATER SYSTEM

Motor Power: 7.5 kw

Butterfly Valve: Φ150 mm

Capacity: 150m3/h

6. AIR SYSTEM

Air Compressor: 1unit

Power: 11 kw

Pressure: 1.0 Mpa

Air flew: 1.2m3/min

7. WEIGHING SYSTEM

7.1 Aggregate Weighing: 1unit

Weighing Capacity: 5000kg

Precision: ±1%

7.2 Cement Weighing: 1 unit

Weighing Capacity: 1200kg

Precision: ±1%

7.3 Water Weighing: 1 unit

Weighing Capacity: 400 kg

Precision: ±1%

7.4 Additive Weighing: 1 unit

Weighing Capacity: 50 kg

Precision: ±1%

8. ConTROL SYSTEM

PLC command and control operation.

Main electrical components: SCHNEIDER or SIMENSE

17’’ colorful computer

Manuel and Auto Control is freely changeable .

1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed

2. With its modularization structure, it is easy to transport, install and debug more quickly.

3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.

4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable

6. PC+PLC control system ensures the high reliability.

7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.

8. Human-based intelligent control facilitates the operation greatly.

9. Structural members are durable, and most electric elements adopt world famous brands.
