Brand:RP

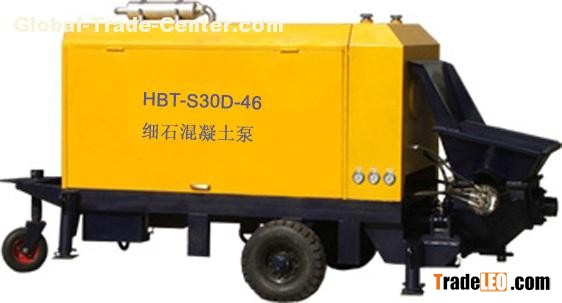

Model:HBT-S30D-46
MOQ:-0 -
Send Inquiry
Specifications：
Delivery Pressure in theory (Mpa): 10/5.5 bar
Pump output volume in theory (m3/h): 16/30 m3/h
Max conveying distance: horizontal 400m/vertical 140m
Max diameter of aggregates:
108mm tube 30mm
133mm tube 40mm
Diesel power: 46KW
Filling height: 1100mm
Fuel tank capacity: 90L
Weight: 3100KG
Size: 4300x1670x1680mm
Main accessories： Diesel engine: Shandong WeiChai Hua Feng Power Co., Ltd Main oil pump: Kawasaki Heavy Industries,. LTD. Hydraulic valves: Beijing Huade Hydraulic Industrial Group Co., Ltd. Electrical system： PLC：OMRON from Japan Air switch：CHNT Electric CO,. LTD. Relay：OMRON from Japan
