Brand:RP

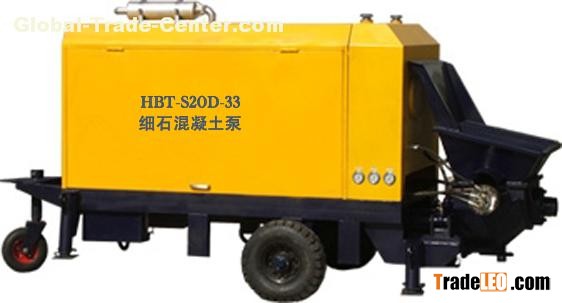

Model:HBT-S20D-33
MOQ:-0 -
Send Inquiry
Specifications：
Delivery Pressure in theory (Mpa) 11/6 Mpa
Pump output volume in theory (m3/h): 10/18.6 m3/h
Max conveying distance: horizontal 400m/vertical 140m
Max diameter of aggregates:
76mm tube 25mm
89mm tube 30mm
Diesel power: 33KW
Hopper capacity: 0.34m3
Filling height: 1000mm
Fuel tank capacity: 80L
Weight: 2080KG
Size: 3900x1600x1950mm
Main accessories： Diesel engine: Shandong WeiChai Hua Feng Power Co., Ltd Main oil pump: Made in China Hydraulic valves: Beijing Huade Hydraulic Industrial Group Co., Ltd. Electrical system: PLC: OMRON from Japan Air switch: CHNT Electric CO,. LTD. Relay: OMRON from Japan
