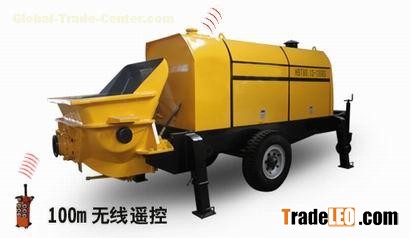

Overview: In order to meet the field site and other power operating environment needs, the company developed small concrete pump with diesel power driven. The pump integrated mechanical , electricity, and liquid technology in one , it is characterized by reliable performance, stable running, strong pump power. Power system using most advanced diesel engine with low emissions, low fuel consumption and meets Euro III emission standard; Powerful, reliable and durable, easy maintenance, machine can work in the harsh environment with high durability and stability. Pumping operation using advanced " diesel engine speed auto adjustment” technology, in the pumping process, the rotating speed of a diesel engine is detected by speed sensor and results is transmitted to the control computer, as pumping pressure changes can cause the corresponding change of the rotation speed of the diesel engine, control the computer will increase or decrease the throttle according to the rotation speed change to automatically adjust the diesel engine to run in the best condition, as realized stable pump operation and fuel conservation, in the mean time protected diesel engine from over-speed running and avoided damage of hydraulic pump by over-speed.

Performance characteristics:

l Intelligent electronic control system, automatic control diesel engine speed, stable operation, low oil consumption.

l Variable Main oil pump with constant power, give full play to the efficiency of active power

l Using advanced S valve structure, floating seal automatic compensation wear gap, good sealing effect

l Glasses plate and cutting ring, made of high hard wear-resistant alloy materials, longer life

l The outlet pressure is high, can meet the high-rise buildings and the construction of long-distance transportation requirements

l Hydraulic oil cooling adopts advanced wind cooling system, no water, easy to use

l The electrical part, using PLC control, has the best handling characteristics.

l With reverse pump function, minimize pipeline blockage

l Electrical box equipped with wired remote control handle, easy to operate



Technical Parameters:







Parameter Name		Model
		HBT-S10D-25	HBT-S20D-33	HBT-S30D-46	HBT-S40D-60
Delivery Pressure in theory (Mpa)		6.5	6.5	6.34	6.34
Pump output volume in theory (m3/h)		11.6	18.6	29.4	42.8
Max. delivery distance in theory (m)	Horizontal	300
	Vertical	120
Max. Aggregate Diameter (mm)	Pipe Φ76mm	25
	Pipe  Φ89mm	30
	Pipe  Φ100mm			35
	Pipe Φ125mm			40
Main electric engine power (kw)		26.5	33	46	60
Hopper capacity (m3)		0.34		0.4
Feeding height (mm)		950	1000	1100	1100
Hydraulic Oil Tank Capacity (L)		120	150	180	180
Diesel oil tank capacity(L)		70	90	120	150
Distribution Valve Type		S Pipe valve
Main machine weight (kg)		1850	2080	2550	2830
Out Dimension: L×W×H (mm)		3770*1420*1620	3950*1600*1950	4300*1670*1680	4850*1670*2070
