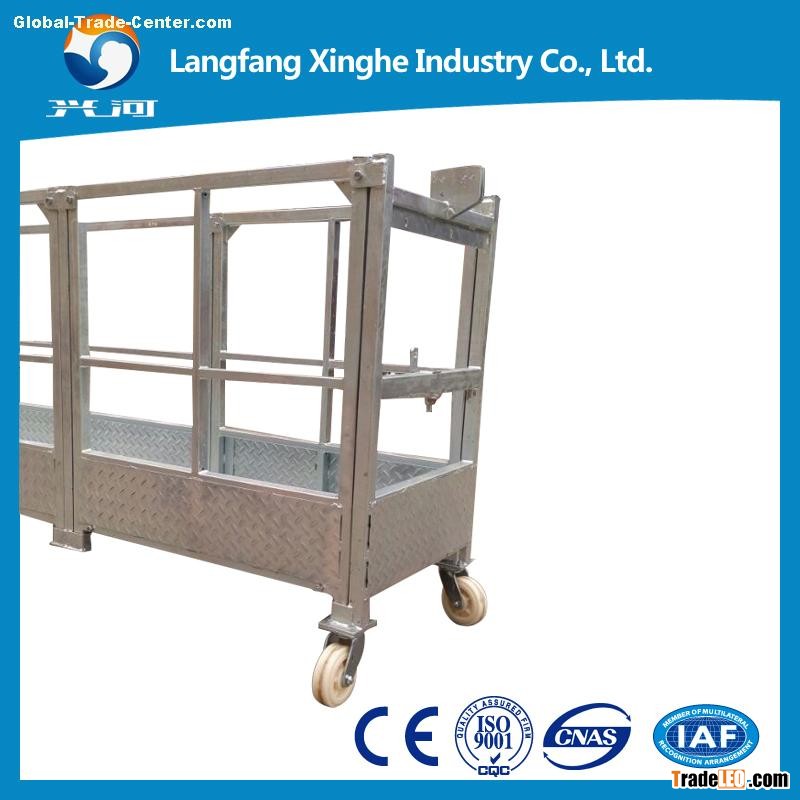

•ZLP Series Suspended platform / Cradle / Gondola mainly include two types: zlp630&zlp800
•Suspended platform are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
•The welding of the support structure of the platform is made of quality steel profiles
•The connection of the individual parts of the structure in each unit is made with nuts and bol ts.
•The powered suspended platform is equipped with wheels for easy movement around the construction site
•Along with standard powered suspended platform we also manufacture specialpowered suspended platform with 90°, 45° and Circular shapes.
•We can also manufacture suspended platform as per client’s specific requirements

                               Advantage

1)The product of each order will be strictly tested one by one, the whole machinery will be test by over loading.

2) All of the components are produced by ourselves workers, the quality and the delivery time can be ensured.

3) As a factory, the cost of the goods can be controlled very well, you can get a more competitive price.

4) We can supply the online technical guidance, if your order quantity reaches our requirement, we can arrange our technical team to your country to setting equipment.

5) The important components of hoist , the warranty is 5~6 years, such as gear.

    platform

Item: ZLP630 suspended platform / ZLP800 suspended platform
Rated Loading:630kg / 800kg
Lifting Speed:~9.5m/min / ~8.5m/min
Platform size(L*W*H):(3*2.0m)*0.69m*1.1     (3*2.5m)*0.69m*1.18mm
   ¤The length of work platform include  1m,2m,3m,1.5m,2.5m .  The work platform can be made in any combination  based on customer's requirement.



                 Hanging Device

Rated exerted length of front beam:1.1m~1.5m
Terrain clearance of front beam:1.45m~1.75m



           Hoist

Type:LTD63 / LTD80
Motor type:Customization / Customization
Power:2*1.5Kw / 2*2.0Kw
Voltage:380v/415v/220v(50hz) / 380v/415v/220v(60hz)
Speed:1400n/min / 1400n/min
Braking torque:15N.M / 15N.M



       Safety Lock

Parameters:Tilt-proofing safety lock / Acentric safety lock
 type:LS30 / LS30
Lock cylinder:special stainless steel / special stainless steel
shell:hot galvanized steel / hot galvanized steel
Allowable impact force:30KN / 30KN
Cable-locking angle: 3 º-8 º



            Quality

Suspension platform:300kg / 370kg
Hoist:52kg*2 / 56kg*2
Safety lock:5.5kg*2 / 5.5kg*2
Suspension  mechanism:320kg (not including counter weight)
                                       320kg (not including counter weight)
Electricity box:18kg / 18kg
Complete machine:753kg / 831kg
Counter weight:1000kg(25kg*40pcs) / 1000kg(25kg*40pcs)
Loading quantity:20GP 12sets
                           40HQ  30sets



      wire rope

Type :4*31SW+FC-φ8.3       Broken pulling force≥53500N
          4*31SW+FC-φ8.3       Broken pulling force≥62500N



      cable line

Type:3*2.5+2*1.5YC-5(one piece 96m)
