Brand:greentelftth
Model:greentelftth
MOQ:-0 -

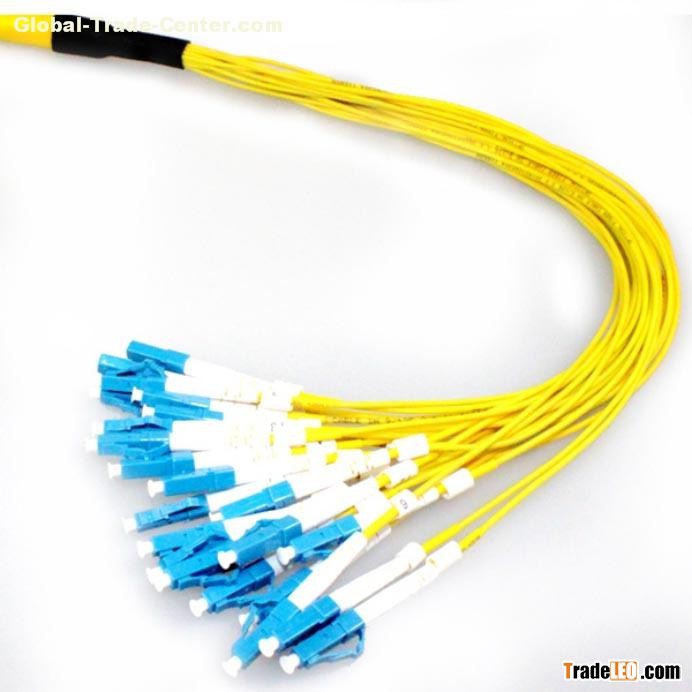

Drop Cable are connected single fiber cable or duplex fiber cable. website:www.greentelftth.com Varies connectors such as FC,SC,ST,LC,MU,E2000,DIN are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance. Green Telecom drop cable offers superior optical performance, high stability and high reliability, meet various application requirements in FTTx construction, ODN construction, LAN, Metro network and CATV.
Features Compact design Low insertion loss and low PDL High reliability High channel counts Wide wavelength range Large operating and temperature range Customized packaging and configuration Full Telcordia GR1209/1221 qualifications
Specification
| FTTx Cable Parameter | |
| Connector Type | SC FC ST LC |
| Polish Type | UPC or APC |
| Fiber Type | SM or MM(50/125um or 65.5/125um) |
| Fiber Count Type | Simplex or Duplex |
| Cable Jacket | Black(Outdoor) or White(Indoor) |
| Cable Diameter | 3.1mmx2.0mm(SP), 5.2mmx2.0mm(DP) |
| Strengthen Member | S:Steel Wire, KFRP:Kevlar, GFRP:Glass |
| Fiber Insertion Loss(dB) | < 0. 2 |
| Connector Insertion Loss(dB) | < 0. 4 |
| Connector Return Loss(dB) | UPC(> 55dB),APC(>60dB) |
| Repeatability(500 times)(dB) | < 0. 2 |
| Bending Radius(mm) | > 30 |
| Tensile Strength(kg/100mm) | >600 |
| Working Temperature | -20 (oC) to +60(oC) |
| Storage Temperature | -40 (oC) to +80(oC) |
| Relative Humidity | < 90%RH |
Customization Event Fiber Core Type Strength Member Type Cable Length Simplex or Duplex Connector A Type Connector B Type Polish Type
Ordering Information OFDC--XX -XX- XX-- XX- XX-- XX-- XX 1 - 2 - 3 - 4 - 5 - 6 - 7
| 1 Fiber Type | 2 3 Connector | 4 Cable Type | 5 Strength Member | 6 Cable Color | 7 Cable Length |
| S0:G652D | Nil:No Adaptor | SP: Simplex | SW:Steel Wire | YL:Yellow | 0:0m |
| S1:G657A | SU:SU/UPC | DP:Duplex | KFRP: Kevlar Fiber Reinforcement Plastic | BU:Blue | ........ |
| S2:G657A2 | SA:SA/UPC | OG:Orange | 999:999m | ||
| S3:G657B2 | FU:FC/UPC | GFRP: Glass Fiber Reinforcement Plastic | BN:Brown | ||
| S4:G657B3 | FA:FC/APC | GY:Gray | |||
| S5:G655C | LU:LC/UPC | WT:White | |||
| M1:50/125um | LA:LC/APC | RD:Red | |||
| M2:62.5/125um | BK:Black | ||||
| M3: OM3 | VL:Violet | ||||
| M4: OM4 | PK:Pink | ||||
| TUR:Turquoise |
