Brand:gzcleanroom
Model:gzcleanroom
MOQ:-0 -

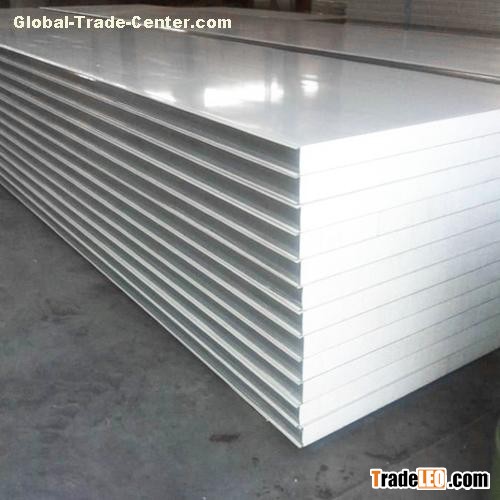

| Color steel foam sandwich panel / Gzcleanroom.com Magnesium oxide Sandwich panel | ||
| Type | Color steel foam sandwich panel (overlap joint) | |
| Dimensions | Thickness | 50-200mm |
| Width | 1150mm (effective width) | |
| Length | Less than 11.8m | |
| External face | Material | PPGI |
| Thickness | 0.3-0.7mm | |
| Thickness of the zinc | - | |
| Corrosion protection | Color coated | |
| Coating | Polyester | |
| Thickness of coating | 20 micron | |
| Color | According to the RAL | |
| Pattern | Nearly plain | |
| Insulation | Optional foam Material | EPS;Rock wool;PU |
| Thickness | 50-200mm | |
| Density | 200-220kg/m3 | |
| Thermal conductivity | ��0.055W/m.K | |
| Internal face | Material | PPGI |
| Steel thickness | 0.3-0.7mm | |
| Color | Grey white or customized | |
| Corrosion protection | Color coated | |
| Coating | Polyester | |
| Thickness of coating | 7micron | |
| Pattern | Plain | |
