Brand:Gzcleanroom
Model:Gzcleanroom
MOQ:-0 -

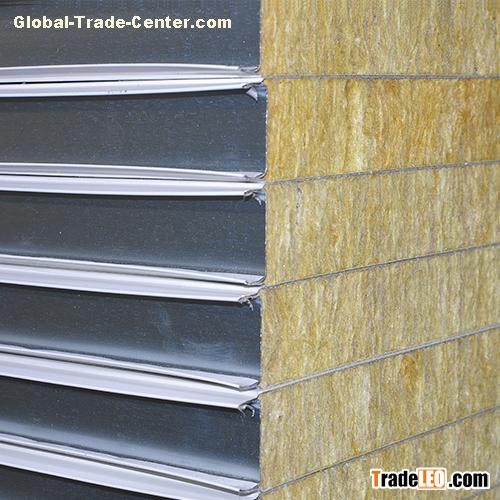

| Gzcleanroom.com Color steel foam sandwich panel / Rock wool sandwich panel | ||
| Type | Color steel foam sandwich panel (overlap joint) | |
| Dimensions | Thickness | 50-200mm |
| Width | 1150mm (effective width) | |
| Length | Less than 11.8m | |
| External face | Material | PPGI |
| Thickness | 0.3-0.7mm | |
| Thickness of the zinc | - | |
| Corrosion protection | Color coated | |
| Coating | Polyester | |
| Thickness of coating | 20 micron | |
| Color | According to the RAL | |
| Pattern | Nearly plain | |
| Insulation | Optional foam Material | EPS;Polyurethane;Magnesium |
| Thickness | 50-200mm | |
| Density | 100-120kg/m3 | |
| Thermal conductivity | <0.044w/mk | |
| Internal face | Material | PPGI |
| Steel thickness | 0.3-0.7mm | |
| Color | Grey white or customized | |
| Corrosion protection | Color coated | |
| Coating | Polyester | |
| Thickness of coating | 7micron | |
| Pattern | Plain | |
