Quick Details

• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Cosuper Inverter
• Model Number: CPT3000
• Output Power: 3000w
• Output Type: Single
• Size: 525*255*195(L*W*H)
• Weight: 24kg
• Input Voltage: 12/24/48VDC
• Output Voltage: 100/110/120/220/230/240VAC
• Type: DC/AC Inverters
• Output Frequency: 50/60Hz
• Output Current: 0~80A
• Output waveform: True sine wave(THD<5%)
• Transfer Time: <8ms
• Surge power: MAX 3*rated start power
• Protection: UVP/OVP/OSP/OLP/OTP
• AC Range: 90~135VAC/190~245VAC
• Remote Control: RJ45:PTM-10 Or PTM-12
• Working Temp: -20~50℃
• Working Humidity: 20~90%RH
• No Load Power: <50W(Power saving mode)

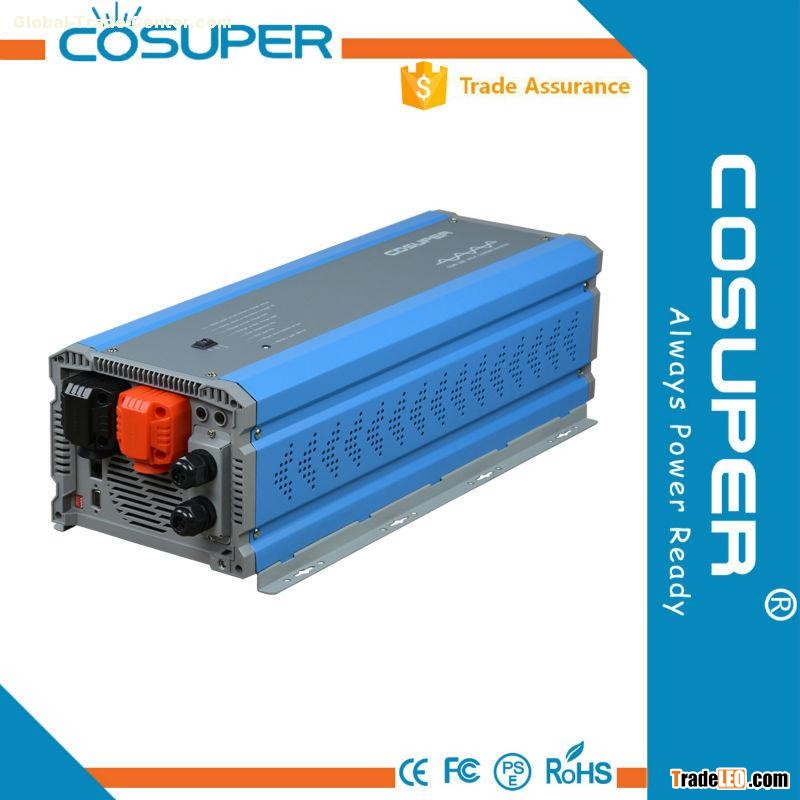

• Product name: power inverter 3000w

Power Inverter 3000W Features

1.Professional solution for Off-Grid system

 2.Perfect combination of Low-voltage UPS and inverter

 3.Self-consumption down 50% than low frequency inverter

 4. Dry contact: no AC output or O.T,O.L ,UV to other device

 5. Remote control RJ11/RJ45 :PTM-10 and PTM-12 (optional)

 6. Input AC :power via grid power or Generator compatibly

 7. Pure sine wave output ,input & output fully isolation

 8.Three-gear switches ,with energy saving mode

9. Attractive appearance with V0 plastic

 10. AC input to start inverter function

 11. Input polarity/UVP/OVP/OSP/OLP/OTP

 12. Network via RS232 Communicate Protocol (optional)

 13.DIP Switches: Output frequency, AC output range,charge current ,DC/AC priority
