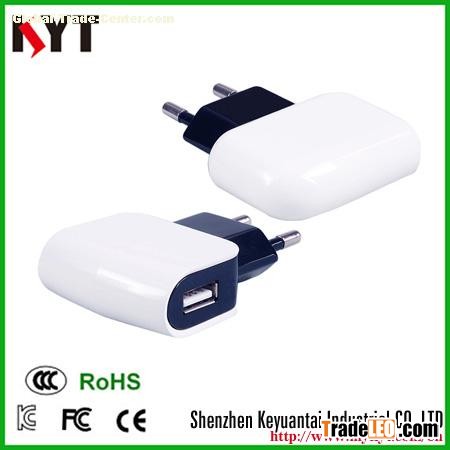

China manufacturer from Shenzhen, 5V1A wall charger USB ports for Iphone and Ipad
2016-09-22 09:04 Views:77
Price:
1.00 USD/Pieces
Brand:KYT
Model:kyt-801
MOQ:1000 Pieces
Send Inquiry
| nput | 100 to 240V AC, 50/60Hz |
| Output power | 5W series |
| Output voltage | 3 to 24V DC |
| Output current | 10 to 1,200mA |
| Protection | Overload protection |
| Output over voltage protection |
| Short circuit protection |
| Certificate | CEC power supply standard |
| CE approved (EMC, TVD) |
| KC |
| ROHS |
| FCC |
| Efficiency | Mini 68 % |
| Standard DC Connector | Micro USB & Mini USB & iPhone 30Pin & 2.0*0.7 & 2.5*0.75 &
3.5*1.35 & 4.0*1.7 &5.5*2.1 &5.5*2.5 |
| No Load Power Consumption | ≤0.3W at Rated Voltage |
| Ripple And Noise | Output voltage 1% |
| High-Voltage test | Primary to secondary: 3 kV 5 mA 60S |
| Leakage Current | 0.5 mA(max) at input 240V AC |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| Dimension | 50x36x17.7mm |
| Net weight | about 35 gram per unit |
| MTBF | 50,000 hours |
| Insulation Resistance:Primary to Secondary | 50 Meg. Ohms min. 500VDC |
| Application | Mobile phone, Electronic cigarette, MP3, TabletPC, MID, Bluetooth headset, Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc. |
| Packing A | Qty: 100PCS/CTN |
| MEA: L26.5*W21.5*H16CM |
| Packing Material:PE bag+white box+carton |
| Packing B | Qty: 72PCS/CTN |
| MEA:L47*W38*H25CM |
| Packing Material:PE bag+Paper segment+carton |
| Packing C (With 2 in 1 USB charger&sync cable) | QTY: 50PCS/CTN |
| MEA:L51.5*W21.5*H32.5 CM |
| Packing Material:blister+carton |
