Brand:V-king
Model:VK-402
MOQ:100 Pieces

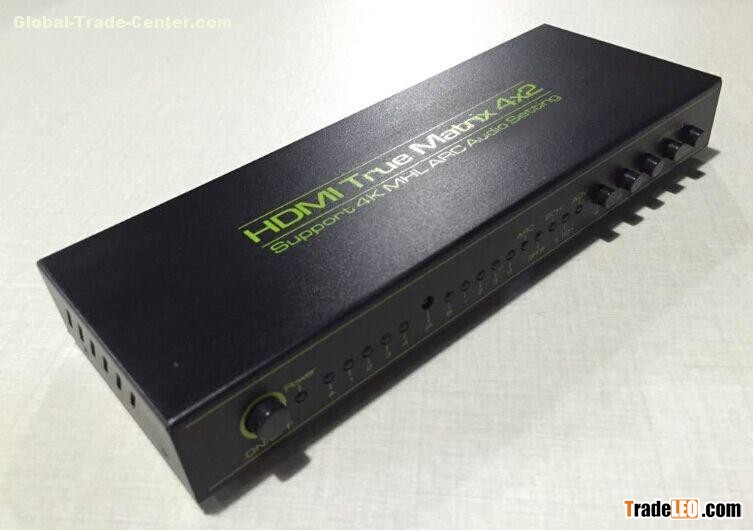

The 4x2 Matrix can connect four HD Source with two HD Display, which can also do extra audio output by the SPDIF port or Headphone port. It can switch or distribute the four HD Source to the two HD Display easily. The matrix also can support ARC function, which can upstream the TV audio to the amplifier.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l One HDMI Input support MHL/HDMI double mode input, the other three HDMI input support only HDMI single mode input.
l The output A support extra audio output by SPDIF port and
l HDMI to achieve the synchronization of audio signal separation. There are ADV/2.0CH / 5.1CH three kinds of audio mode options
l Support Full HD 1080P, Full 3D
l Support 4K*2K resolution
l Support deep color 30bit, 36bit, 48bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG24 HDMI standard cable length, output up to 25metres AWG24 cable length
l Inputs can be switched with the IR remote control，also can be controlled by two switch buttons.
l MHL port supports the RCP function, it can do control to the smart phone and the switcher by the TV remote.
l MHL/HDMI working in dual mode, can reduce the number of ports
l The SPDIF audio output format can be chose by pressing the switch key or the remote.
l It can come back to the default the input 1 status when restarted or reset.
l Led Status Light allow the user to know the working status easily.
l No loss of quality
l Installs in minutes
l Need DC5V/
