Features

1. No need to install drivers, portable, flexible, plug and play.

2. Provide advanced signal processing with great precision, colors, resolutions, and details;

3. Support PAL, NTSC3.58, NTSC4.43, SECAM,

PAL/M, PAL/N standard TV formats input.

4. Support HDMI 1080p or 720p output.

2.0 SPECIFICATIONS

1. Input ports: 1xRCA (Yellow, White, Red).

2. Output ports: 1xHDMI.

3. Dimensions (mm): 66(D) x55(W) x20(H)

4. Wight (g): 40

5. Composite input: PAL, NTSC3.58, NTSC4.43,

SECAM, PAL/M,PAL/N.

6. HDMI output: 1080p60Hz, 720p/60Hz.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

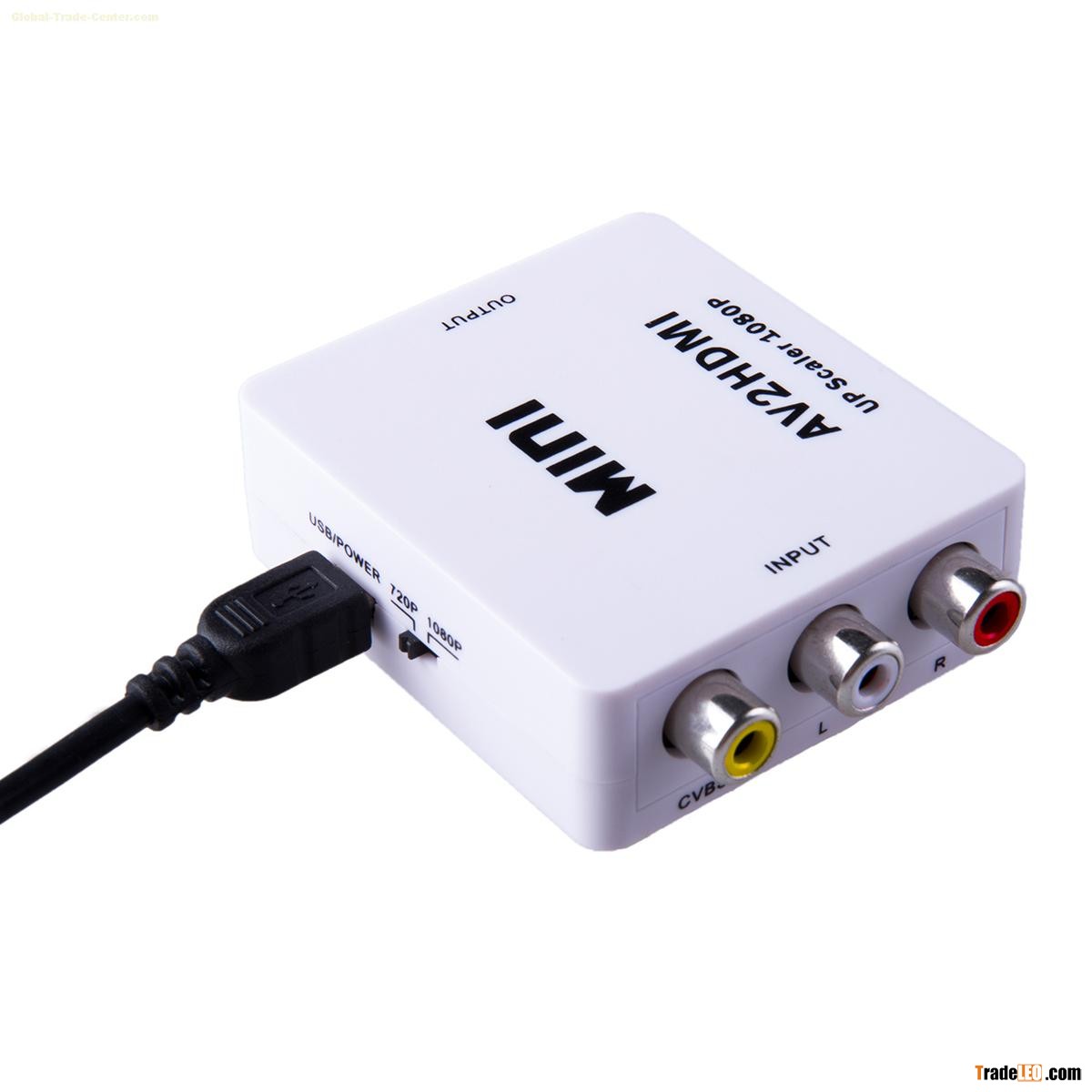

1) Main unit (Mini CVBS to HDMI converter) -----1 PCS

2) USB cable ---------------------------------------------1 PCS

3) User Manual. ------------------------------------------1 PCS

4.0 PANEL DEscriptIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
