Features

1. No need to install drivers, portable, flexible, plug and play.

2. Low power, No power adaptor.

3. Support NTSC and PAL two standard TV formats

output

4. Compatible HDMI1.3

2.0 SPECIFICATIONS

1. Input ports: 1xHDMI.

2. Output ports: 1xRCA (Yellow, White, Red)

3. Dimensions (mm): 66(D) x55(W) x20(H)

4. Wight (g): 40

5. HDMI Input Resolution:

 640x480@60Hz,800x600@60Hz,                       1024x768@60Hz,1280x720@60Hz,

1280x1024@60Hz,1360x768@60Hz,

1600x1200@60Hz,1920x1080@60Hz,

480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,

720p50/60Hz,1080I50/60Hz, 1080p50/60Hz.

6. CVBS output: PAL, NTSC_M, and (NTSC_J)

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

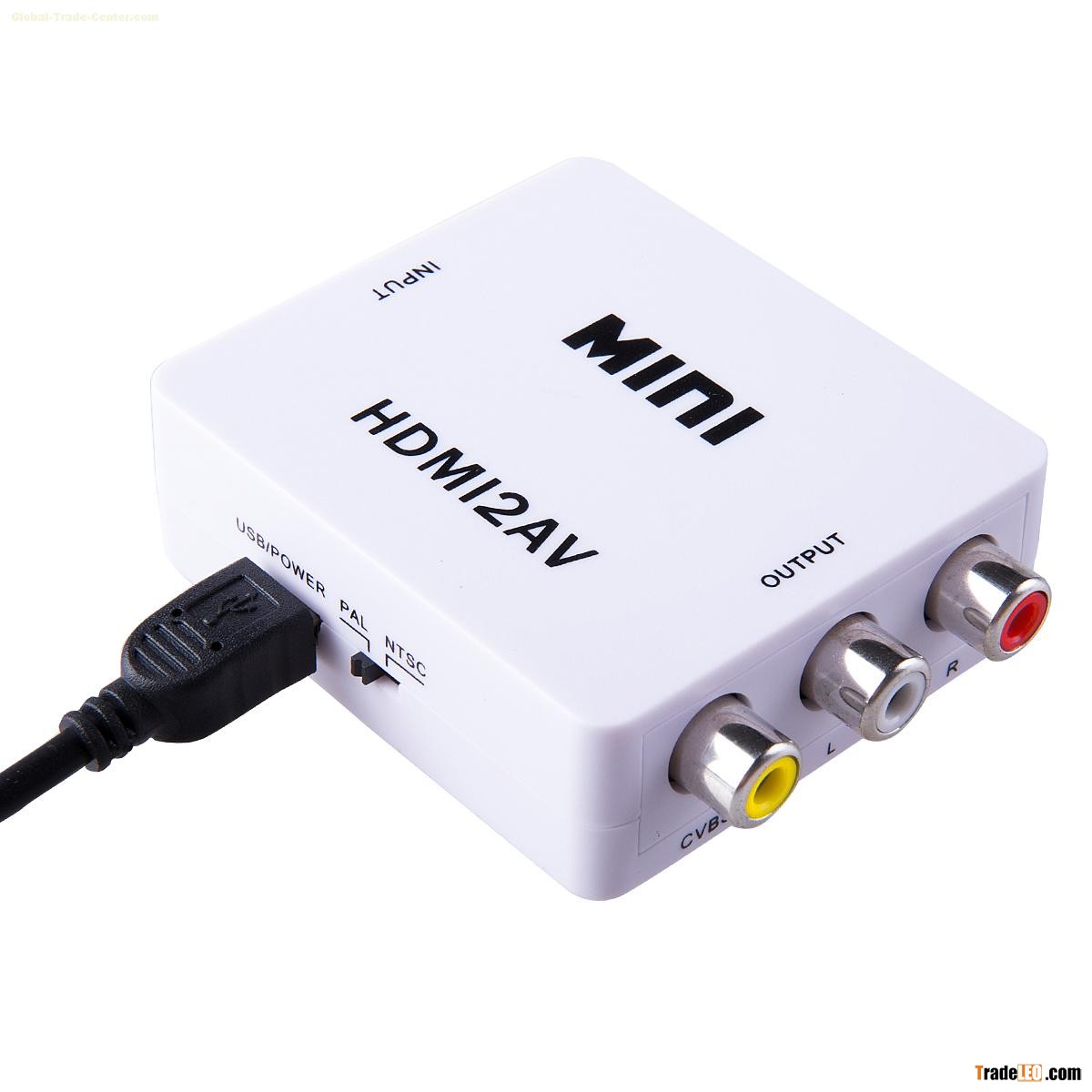

1) Main unit (HDMI to AV Converter) ---------------1PCS

2) USB Cable---------------------------------------------1PCS

3) User Manual. -----------------------------------------1PCS
