1. Introduction
Size D, R20P, UM-1 SUPER HEAVY DUTY
Nominal Voltage: 1.5V
Open Circuit Voltage: 1.610V~1.725V
Diameter: 32.3~34.2mm
Height: 59.5 ~ 61.5 mm
Shelf life: 2 years
2. Technical Data
Maximum Average Duration
| R20P D UM-1 | |||
| Test Condition | Cutoff voltage | MAD | |
| 3.9Ω 24h/d | 0.9V | 500min | |
| 10Ω 4h/d | 0.9V | 37h | |
| 3.9Ω 1h/d | 0.9V | 12.5h | |
| 2.2Ω 1h/d | 0.8V | 6h | |
| 2.2Ω 4min/h, 8h/d | 0.9V | 330min | |
| 1.5Ω 4min/15min, 8h/d | 0.9V | 210min | |
Contents of Heavy metal
| Item | 2006/66/EC standard | ENTOP Value |
| Lead (%) | - | ＜1000ppm |
| Cadmium (%) | ＜20ppm | ＜20ppm |
| Mercury (%) | ＜5ppm | ＜1ppm |
3. Packaging Detail

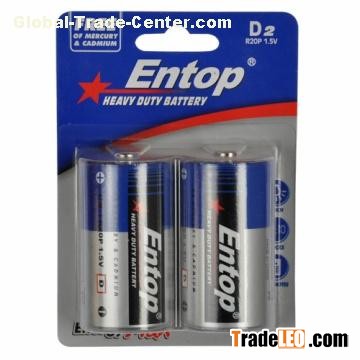

Blister R20P/2B
| PACK (PCS) | 2 |
| INNER BOX （PKS） | 12 |
| CTN （PKS） | 96 |
| MEASUREMENT （CM） | 37.5*33.6*25.0(cm) |
| G.W （KGS） | 16.7KG |
SHRINK R20P/2S
| PACK (PCS) | 2 |
| INNER BOX （PKS） | 12 |
| CTN （PKS） | 144 |
| MEASUREMENT （CM） | 41.5*29.0*21.0(cm) |
| G.W （KGS） | 24.6KG |
