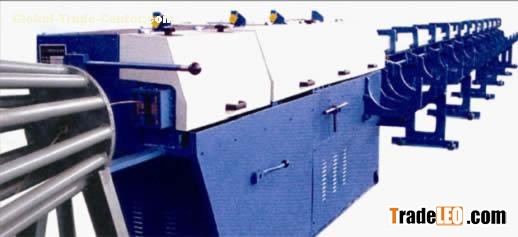

Wire straightening and cutting machine can be used as a stand-alone machine or in combination with wire drawing machines or mesh welding machines. It is wildly applied in automobile industry, metal processing industry, fabrication works and electrical industry.
Two types are provided to meet with your particular requirements.
- Straightening and cutting machine for ribbed wire
- Straightening and cutting machine for cold drawing wire
Straightening and cutting machine for ribbed wire
This machine is developed for cut-to-length rods with accurate length and good surface quality. The cutting system has two types. One by pneumatic clutch is suitable for mesh welding machines, and the other by servomotor-driven flying shear is ideal for frequent rod length changes. It is stilled equipped with a freely programmable control system for easy operation.
Technical parameters:
| Components | Technical specifications |
| Wire diameter | Φ 6 - 12 mm for round wire and cold-rolled ribbed wire |
| Φ 6 - 10 mm for hot-rolled ribbed wire | |
| Straightening speed | 75-100-130 m/min |
| Scope of length | 800mm---12000mm(also can be adjusted by customers) |
| Linearity of straightening | ≤2mm/m |
| Cut-to-length tolerance | ±1mm |
| Total rated power | 26KVA, 380V-60Hz |
| Total weight | 4 tons |
| coil pay-off | Vertical plate, With brake system by compressed air |
| trumpet | Bell-mouthed |
| straightening unit | Straightening blocks, turning unit |
| Cutting unit | Special mechanical unit, clutch by compressed air |
| Discharge and collect unit | 12 m in length, driven by compressed air |
| Signal seat for cutting |
Straightening and cutting machine for cold drawing wire
Applied for cold drawing wires - ferrous and non-ferrous. Wires can be cut to the desired length automatically.
Technical parameters:
- Wire diameter: 3.5 ~ 6.0 mm
- Scope of length: 3000 ~ 8000 mm
- Straightening motor: 3KW
- Cutting motor: 1.5KW
