Brand:Meind
Model:-
MOQ:1 Pieces
Send Inquiry

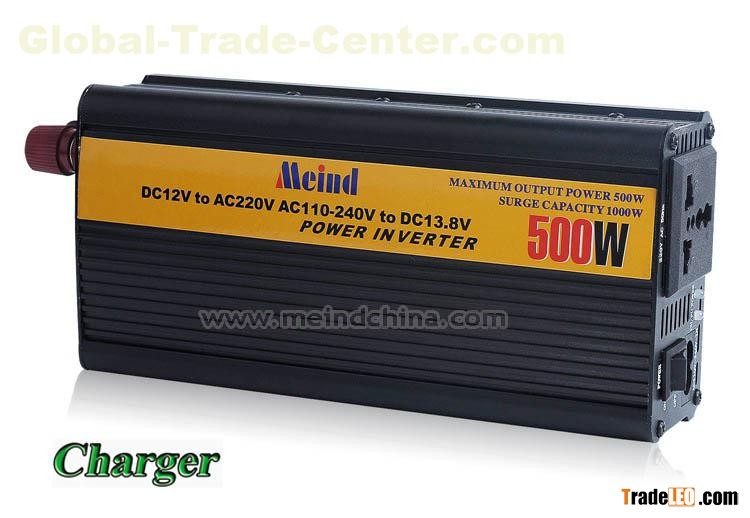

| Inverter Model | M500CD (500W) with Charger |
| 1. Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| 2. Output Voltage: | AC220V / AC100V / AC120V / AC240V |
| 3. Continuous Power output: | 500W |
| 4. Surge Power Capacity: | 1000W |
| 5. Output Waveform: | Modified Sine Wave |
| 6. Frequency: | 50Hz/60Hz +/-4% |
| 7. Availability Power: | >=90.5% |
| 8. Low Voltage Range: | |
| 9. High Voltage Range: | >DC 14.8V / DC 28.5 |
| 10. No Load current: | <=0.4A |
| 11. Over Load Protection: | >500W |
| 12. Over Heat Protection: | >60 Degree Centigrade |
| 13. Fuse: | 2*30A |
| 14. Cooling Fun: | Yes |
| 15. Charger: | Input: AC 110V-240V Output: DC 13.8V/DC 27.6V AMP: 8A-15A The Inverter will alarm and cut off when the battery is full of power |
| 16. Product Packing: | Gift Box |
| 17. Product Size: | 190*95*55mm |
| 18. Product N.W/G.W: | 1.13kg/1.36kg |
| 19. Carton Packing: | 25PCS/CTN |
| 20. Carton Weight: | 34kg |
| 21. Carton Size: | 51*38.8*38cm |
