Brand:Miiyya
Model:SP818A
MOQ:50 Sets

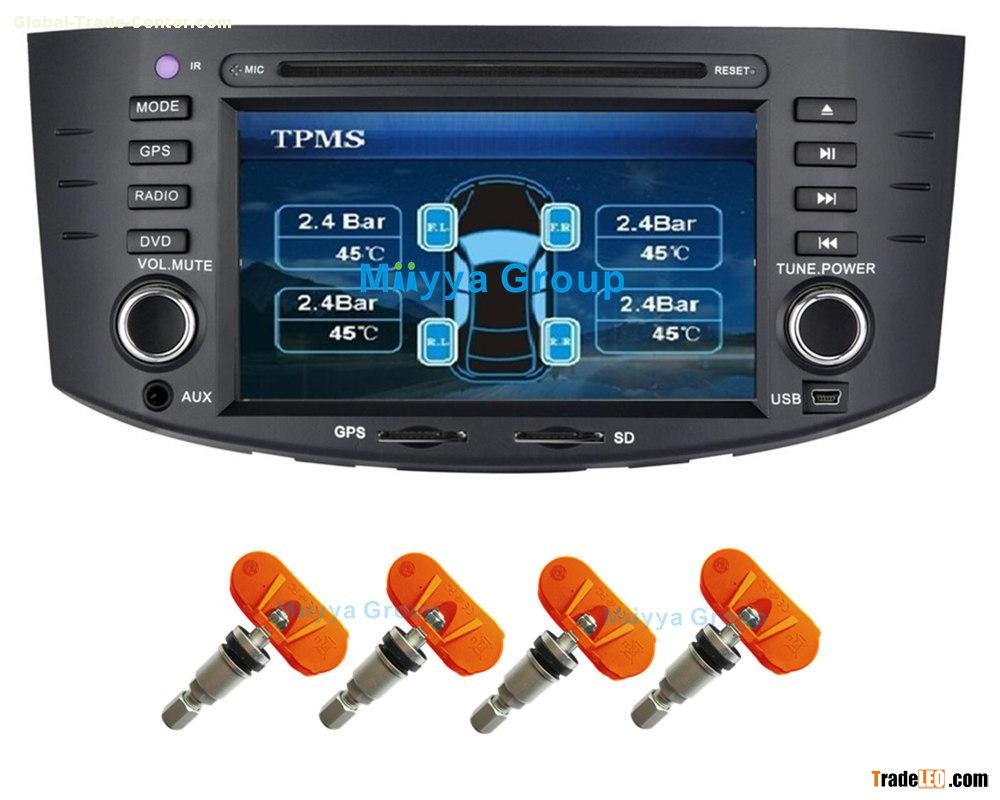

TPMS system with internal sensor for automobiles
Application.:any car DVD
Model SP818A Components
| No | Accessory Name | Quantity |
| a | Controller | 1 |
| b | Receiver | 1 |
| c | TPMS button | 1 |
| d | Sensor | 4 |
| e | Power cable | 1 |
| f | DVD trigger line | 1 |
| g | TPMS data cable | 1 |
| h | AV data cable | 1 |
| i | Double-side tape | 1 |
| j | User manual | 1 |
| k | Warning stick | 4 |
| l | Bundle | 1 |
Installation Introduction
- TPMS button installation:
Make 3M tape to stick TPMS button in a place where driver can be touched easily
2. Controller and receiver installation
Controller should be installed near DVD; receiver must be far away DVD and controller 50 cm away.
Sensor:
3.Connection diagram
4.Sensors’ position introduction
5.Technical specification
a) Controller & Receiver
Frequency: 433.92MHz
Voltage: 12V±3V
Current: ≤250mA
Operating temperature: -40°C~+85°C
b) Sensor
Frequency: 433.92MHz
Voltage: 2.1-3.6V
Operating temperature: -40°C~+125°C (external sensor: -40°C~+85°C)
Pressure detecting range:0-3.5Bar
Pressure detecting accuracy: ±0.1Bar (25°C)
Temperature detecting accuracy: ±2°C(25°C)
