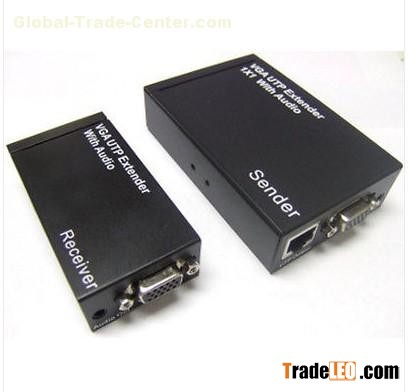

Extend any VGA display and RJ45 device up to 300meters(1000foot)
* Video signal support:
XGA 1920x1200
SXGA 1280 x 1024
WXGA 1366 x 768; 1280 x 768
UXGA 1600 x 1200
* Easy to install and simple to use.

Specifications:
* Video amplifier bandwidth: 350MHz
* Actual Bandwith: 120MHz
* Input video signal: 1.2 Volt P-P
* Horizontal frequency: 15 ~ 70 KHz
* Vertical frequency: 30 ~170 Hz
* Connectors: HD15Pin Female
* link Connector: RJ-45 shielded
* Power Adapter: 5VDC(External)
* Extend VGA video and stereo audio signal max up to 300m over one UTP cat5e/6 cable

* Adjusting GAIN and PEAK to adapt for the different length of UTP cable.
 *GAIN: Brightness adjustment.
 *PEAK: Skew adjustment
