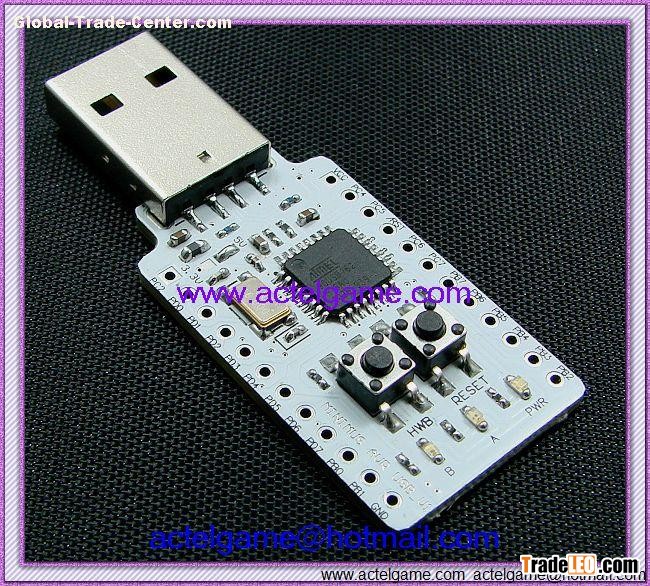

The Minimus AVR USB is powered by an Atmel AT90USB162 that is pre-programmed with
the bootloader which allows code to be programmed inside the chip without any
external programmer, just download the FLIP software from Atmel's web site and load
your HEX code. To enter the bootloader mode you should simply press and hold HWB
button, then press and release the RST button.

* ATMEL AT90USB162
* 22 Programmable I/O Lines
* 16Kbyte Flash
* 512 Byte SRAM
* 512 byte EEPROM
* 16 MIPS Throughput
* USB 2.0 High Speed
* 5V USB Powered
* 16MHz Quartz Crystal Oscillator Circuit
* Power / Status LED's
* Male USB Connector - No Cable Required
* Access to all IO's
* Easy Program / Update with Atmel FLIP (Flexible In-system Programmer)
* Robust HW/Reset Buttons (Simple Once-only Operation When Programming)
* Full LUFA Compatability
* Full LibUSB Compatability
* Simple Plug n Play
* Software Compatible With Windows 9x / Me / NT / 2000 / XP / Vista / 7 and Linux.
