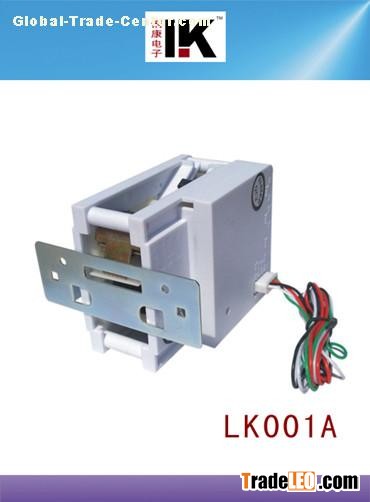

value="1" tcsc="0" unitname="a" w:st="on">LK0011A Ticket Dispenser/ Ticket Outlet Function:
1.Program control and counting precision
2.Speed ticket
3.Has a reverse function

Product Details:

Voltage: DC+12V+10%

Ticket width ： value="29" tcsc="0" unitname="mm" w:st="on">29mm

Ticket length： value="50" tcsc="0" unitname="mm" w:st="on">50mm~value="120" tcsc="0" unitname="mm" w:st="on">120mm

Package ： 20 PCS/ctn

Dimension ：540x275x270

Currents :  70mA ~ 700 mA

Temperature:  value="10" tcsc="0" unitname="ﾰC" w:st="on">-10°C~+value="50" tcsc="0" unitname="ﾰC" w:st="on">50°C

 LK00value="1" tcsc="0" unitname="a" w:st="on">1A ticket outlet/ticket dispenser introduction:

1. Adapt to the machine, Switch to SW1, to choose OV low level or +5V high level as the effective signal of x input voltage.

2. Adapt to the machine, Switch to SW2 to choose N. O. (Normally Open) or N. C. (Normally dose)as the output Sw3 for adjusting the ticket to the best site of ticket-out.

3. First put the ticket into the machine, turn on the test button Sw3 for adjusting the ticket to the best site of ticket-out

4. The fault light on the panel will always power on when ticket is not locket; The light will Power off. It twinkles according to the number of ticket-out.

5. Has a reverse function, so that field maintenance easier;

6. Connect:

White Line----In(Signal input cable)

Black Line---Ground

Red Line---DC+12V

Green Line----OUT(Signal output line）
