Description:

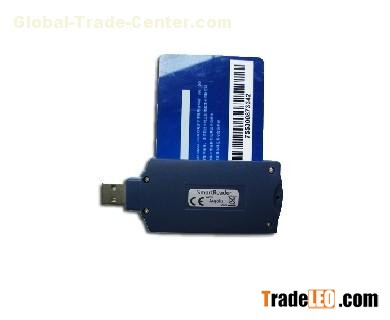

The Smargo Smartreader Plus is the first smartcardreader that can be connected directly into the USB port of a Linux or windows computer or Settop Box without extra cables of power supply
 EXTRA CARDREADER
For eg: Octagon SF-1018 HD PVR Linux Twin, Dreambox, Reelbox, Triple Dragon, Linux PC or Windows PC

 MULTIPLE SMARTREADERS
SmartReaders can be cascaded in an USB hub

SERIAL CARDREADER MODE
Linux: /dev/usb/tts/X or serial COM port under Windows

NEWEST  DESIGN
The arrow shaped design, with an injection-moulded casing in matte blue ABS, will look good in any environment. The new arrow case ensures that you have a high quality product from Argolis with the latest innovative hardware and software features.

 GENERAL
The SmartReader is an USB cardreader /programmer based on a powerful ATMEL ARM 91 processor. The SmartReader + incorporates an integrated USB to Serial converter, which enables the SmartReader plus to work with all standard Phoenix compatible Linux and Windows applications.

The SmartReaders supports besides Linux/Windows computers and receivers like Octagon SF-1018 HD PVR Linux Twin, various Linux and Windows applications for PCI-DVB or USB-DVB.

Details
  Powerfull ARM 91 Thumb Processor
  High-performance 32-bit RISC Architecture
  High-density 16-bitInstruction Set
  64 Kbytes, organized in 512Pages of 128 Bytes (Single Plane)
  16 Kbytes Internal High-speed SRAM, Single-cycle Access at Maximum Speed
 Low-power RC Oscillator, 3 to20 MHz On-chip Oscillator and one PLL
 Supports 3.20, 3.43, 3.69,4.00, 4.36, 4.80, 5.34, 6.00, 6.86, 8.00, 9.61, 12.0  and 16.0 MHz for smartcards (T=0 and T=1)
  No switches on programmer to select the desired mode, automatic frequency controll
 Frequency/Baudrate autocalculation and Frequency Generator
  Developer guide available.
   Works on all Dreambox Models with USB connection, also on 6 MHz with Dreambox 7025.
   Can be cascaded with more SmartReaders (>100) in 1 system using an USB Hub
 Fullspeed USB1.1/ USB2.0
 Com Port via USB
 True ISO7816
 Upgradable firmware
  Windows driver available
 The Full speed USB communication ensures fast and correct data transfer to the card
  Compatible with PCI-DVB or USB-DVB devices
