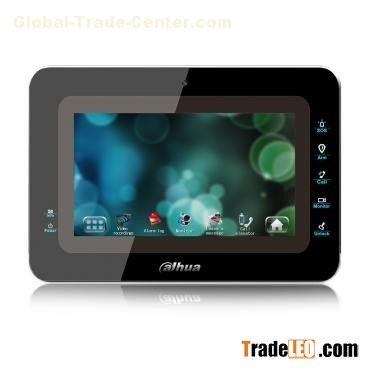

Brand:Dahua
Model:VTH1560B
MOQ:-0 -
DH-VTH1560B Dahua Video Door Phone Features:
> Displayer: Color 7-inch TFT LCD, capacitive touch screen, resolution 800x480
> Compatible to up to 8 security sensors( burglar, fire, gas leakage,etc)
> Call among households • Support 32 channel IP camera surveillance
> 4G SD card inside
> Support snapshot and record when you are surveillance and calling
> Support multiple outdoor phone connection
> 1 channel 10/100Mbps self-adaptive Ethernet • Emergency calling ( to CMS)
> Displayer: Color 7-inch TFT LCD, capacitive touch screen, resolution 800x480
> Compatible to up to 8 security sensors( burglar, fire, gas leakage,etc)
> Call among households • Support 32 channel IP camera surveillance
> 4G SD card inside
> Support snapshot and record when you are surveillance and calling
> Support multiple outdoor phone connection
> 1 channel 10/100Mbps self-adaptive Ethernet • Emergency calling ( to CMS)
Contact Us:
SecuExpress
http://www.secuexpress.com/
Dimensions:
7- inch Color Indoor Monitor VTH1560BSolution Diagram:
| Model | VTH1560B | |
| System | Main Processor | Built-in microcontroller |
| Operation System | Embedded LINUX operating system | |
| Video | compression | H.264 |
| Resolution | 800*480 | |
| Audio | Audio Input | All-direction microphone |
| Audio Output | Embedded loudspeaker | |
| Bidirectional Talk | Support bidirectional talk | |
| Display | Size | Color 7-inch TFT LCD |
| Operating modes | input | Mechanical keys(emergency, protection, video talk, monitoring, unlock ), Touch screen technology |
| Alarm | Alarm input | Support 8 channels input |
| Network | Ethernet | 10 M / 100 Mbps adaptive |
| network protocol | TCP/IP | |
| General | Power | DC 10~15V or supply directly by Special switching power |
| Power Consumption | Standby ≤1.5W，work≤7W | |
| work environment | Temperature: -10℃~+60℃ | |
| Humidity: 10~90%RH | ||
| Dimensions | 221.2mm×154.3mm×24.2mm（L*W*T）; | |
| Weight | 0.8Kg； | |
