INTRODUCTION

Thank you for purchasing our DVI splitter.

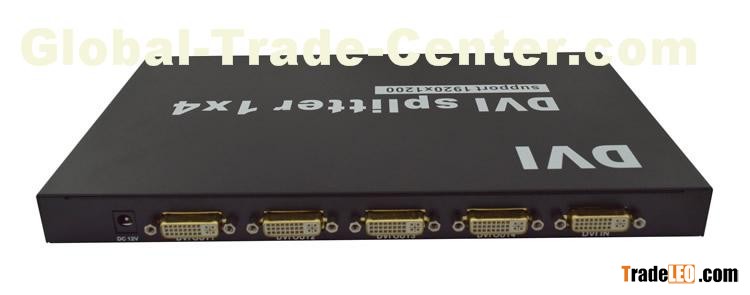

The DVI splitter/distribution enables 2,4 or 8 DVI-D monitors to be driven by a single PC with no loss of signal.

DVI output-1 is the primary connection and is used for the main display.DVI other output follows the main display.

Product D

FEATURES

Distributes computer DVI graphic signal to 2,4 or 8 displays simultaneously.

Accurate and reliable reproduction of digital video signal,with no signal attenuation or distortion.

Fully compliant with the DVI 1.0 standard

Provides high digital resolution up to 1920*1200@60Hz

Full DDC2B communications are supported on Ouput-1.

DVI cables are used to connect the DVI input and the computers output.

Installs in seconds

Note:The DVI splitter will only output a DVI-D (DVI digital) signal.If your using a DVI-1 cable,it will onLY pass the digital signal.

Specification

Control up to 4 DVI  monitors/flat panel displays to display the same video output source from a single PC.

Use Panellink digital technology.

Supports high-resolution dislplay up to UXGA (25-165MHz).

Can be cascaded.

Compliant with the specification of DVI 1.0&1.3

Simultaneous monitor display.

Plug-and-play, No extra software needed.

All lower resolutions operate up to 75 Hz vertical refresh Mounting Brackets and Rack-Mount Kits available.

Video Amplifier Bandwidth                   1.65GHz

Single link Ranger                         1920×1200

DVI Input/Output Connector Type             DVI-D etails

Cable DistDnce(Device to monitor)            10 m(MAx.)

Video in Ports                              24+5(Female)

Video out ports                         SP401, DVISP104:4

LED Indicators                              1×Power
