Brand:-
Model:-
MOQ:-0 -
Send Inquiry

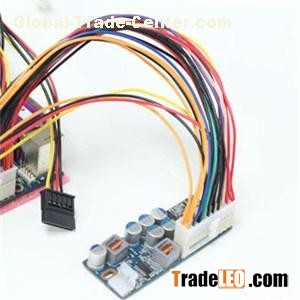

ATX-100 12V-DC 120W Power BoardInput Requirements:PREFIX = OInput Voltage Range:11.2VDC—14.8VDCInput Current Range:12.0A Max @11.2VDCInput Inrush Current：12.0Vmax@12VDCWorking Efficiency：≥85%Output Requirements:5 group power output ItemOutput Voltage(V)Output Current(A)Minimum Value（V）Typical Value（V）Maximum Value （V）Ripple（mV）Standby CurrentTypical ValuePeak Value 3.30V 3.14 3.30 3.475008.010.0 5.00VSB 4.75 5.00 5.25501.01.62.0 5.00V 4.75 5.00 5.255008.010.0 12.00V 11.2012.00 12.812004.04.5-12.00V 10.80-12.00-13.2012000.050.1I/O Interfaces: Protection Function:（For 3.3V， 12V,Website:http://www.sz-piesias.com, 5.00V and 5.00VSB power output)Over-current Protection:When the output current get to its peak value,output shut down.Short-circuit Protection:When output get short-circuit,output shut down. PREFIX = V Working Environment:Working Temp/Humidity:15℃to 35℃/ 45%-75%Storage Temp/Humidity:-40℃to 70℃/ 10%-90%atm press：86Kpa—106Kpa Application Area:Mini PC;IPC;AIO
