·        Output Power: Maximum 16W at RL=4Ω,VCC=15V,BTL

                 Rating  10W at RL=4Ω,VCC=12V,BTL

·        Power efficiency is up to 82%

·        Low Working Voltage Down To 5V, High Working Voltage up To 15V

·        Thermal Protection function　

·        Output Pin Short-Circuit Protection　

·        Low Supply Current (10mA Typical at 12V)　

·        Low Current in Shutdown Mode (<1µA Typical)

·        Separate VCC & PVCC

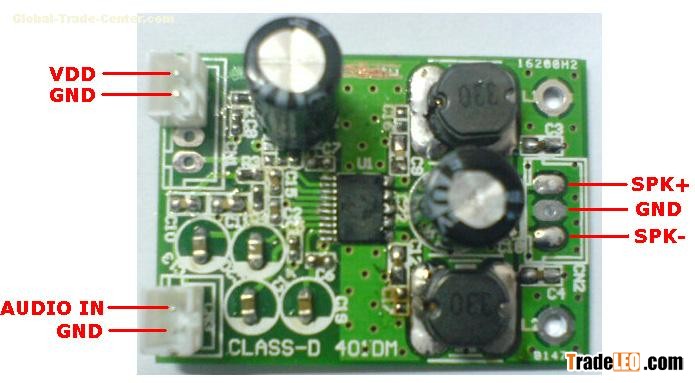

·        Class-D stereo audio design

·        Components use SMT decal, the board dimension is very small

·        IC decal is TQFP48

·        No external heat-sink, Less heat, save heat sink cost

·        The current is very small

·        The PCB design provides both bead and LC solutions

The dimension is only value="47" tcsc="0" unitname="mm" w:st="on">47mm×value="40" tcsc="0" unitname="mm" w:st="on">40mm
