INTRODUCTION

Thank you for purchasing our DVI splitter.

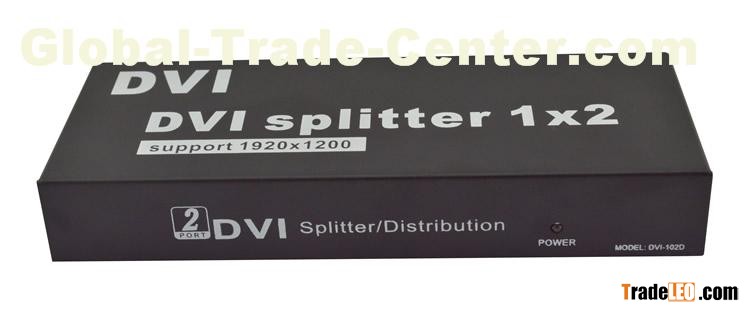

The DVI splitter/distribution enables 2 DVI-D monitors to be driven by a single PC with no loss of signal.

DVI output-1 is the primary connection and is used for the main display.DVI other output follows the main display.Product Details

FEATURES

Distributes computer DVI graphic signal to 2 displays simultaneously.

Accurate and reliable reproduction of digital video signal,with no signal attenuation or distortion.

Fully compliant with the DVI 1.0 standard

Provides high digital resolution up to 1920*1200@60Hz

DVI cables are used to connect the DVI input and the computers output.

Installs in seconds

Note:

1  The DVI splitter will only output a DVI-D (DVI digital) signal.If your using a DVI-I cable,it will onLY pass the digital signal.

2  The splitter is HDCP compliant on both output ports.

3  EDID will be read from Output port 2.

Use Panellink digital technology.

Supports high-resolution dislplay up to UXGA (25-165MHz).

Can be cascaded.

Compliant with the specification of DVI 1.0&1.3

Simultaneous monitor display.

Plug-and-play, No extra software needed.

All lower resolutions operate up to 75 Hz vertical refresh Mounting Brackets and Rack-Mount Kits available.

Video Amplifier Bandwidth                   1.65GHz

Single link Ranger                         1920×1200

DVI Input/Output Connector Type             DVI-D

Cable DistDnce(Device to monitor)            15 m(MAx.)

Video in Ports                              24+5(Female)

Video out ports                             SP201D, DVISP102:2

LED Indicators                              1×Power   DC 5-12v                                              Appearance of size 178 * 66 * 27 MM
