Our series of converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

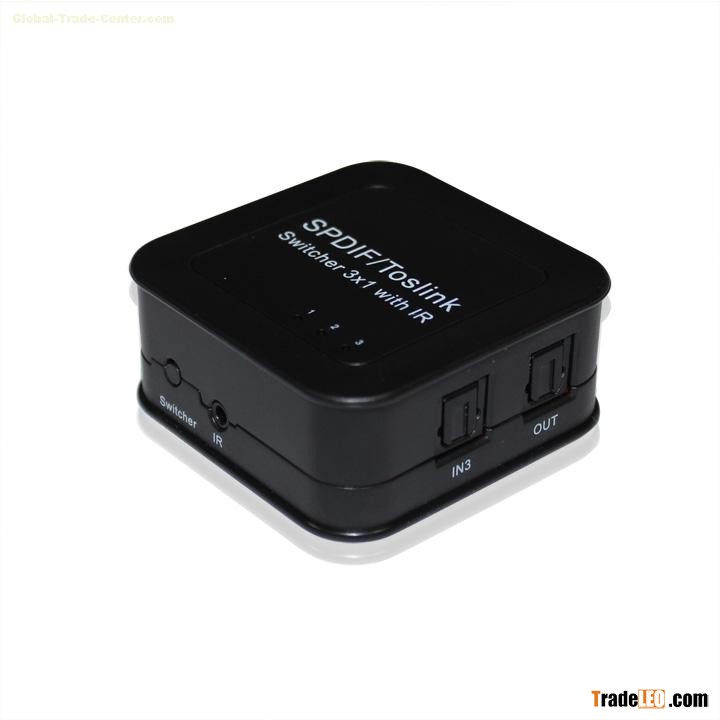

This SPDIF/Toslink Digital Optical Audio Switchers can let the users to connect three digital optical Toslink sources to one optical Toslink (SPDIF) input on your AV amplifier.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

• Three ways of optical fiber signals switch to one sets of SPDIF/Toslink signal receiving device.
• Audio format support : LPCM2.0/DTS/Dolby-AC3
• Support signal retiming
• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
• The input control can through R/M and also can directly press the button
• Support last time working state memory when power off
• Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
• LED status indication
• No loss of quality
• Installs in minutes
• Need DC5V/500mA power supply



  The accessories with the machines lists:



  1. 5V Power Adaptor

  2. Operation Manual

  3. Remote-control unit

  4. IR extender line

  Operating and Connecting:

  1. To use the optical fiber cable to connect the optical fiber signal source (such as blue-ray player, the computer and so on) with the switchers input.

  2. To let the switchers output port connected to the optical fiber signal receiver (such as amplifier, home theater and so on) by using the optical cable.

  3. Connect IR extender line to IR extender line input port.

  4. Connect 5V power supply to the matrix DC input port

  5. Use the remote or button to switch the input source freely.

•



  SPECIFICATIONS:                            ADSW0301M1



  Support audio format…………………………………………………..LPCM2.0/DTS/Dolby-AC3

  Peak wavelength………………........................................................................………650nm

  Max baud rate…..…………….…...………………………………………………………16Mbps

  Output cable distance .....……. …≤40m(Use the optical fiber cable loss less the 0.2Db/m )

  Max working current………………………………………………………..……………...100mA

  Power adapter format………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA

  Operating Temperature range……..…………….………………………………… (0 to +40℃)

  Operating Humidity range…………….………….….……….5 to 90%RH (No Condensation)

  Dimension (L x W x H)………………………………….………….…………54x54x23.5 (mm)

  Weight…..………………………………………………………..……………………………35g

•
