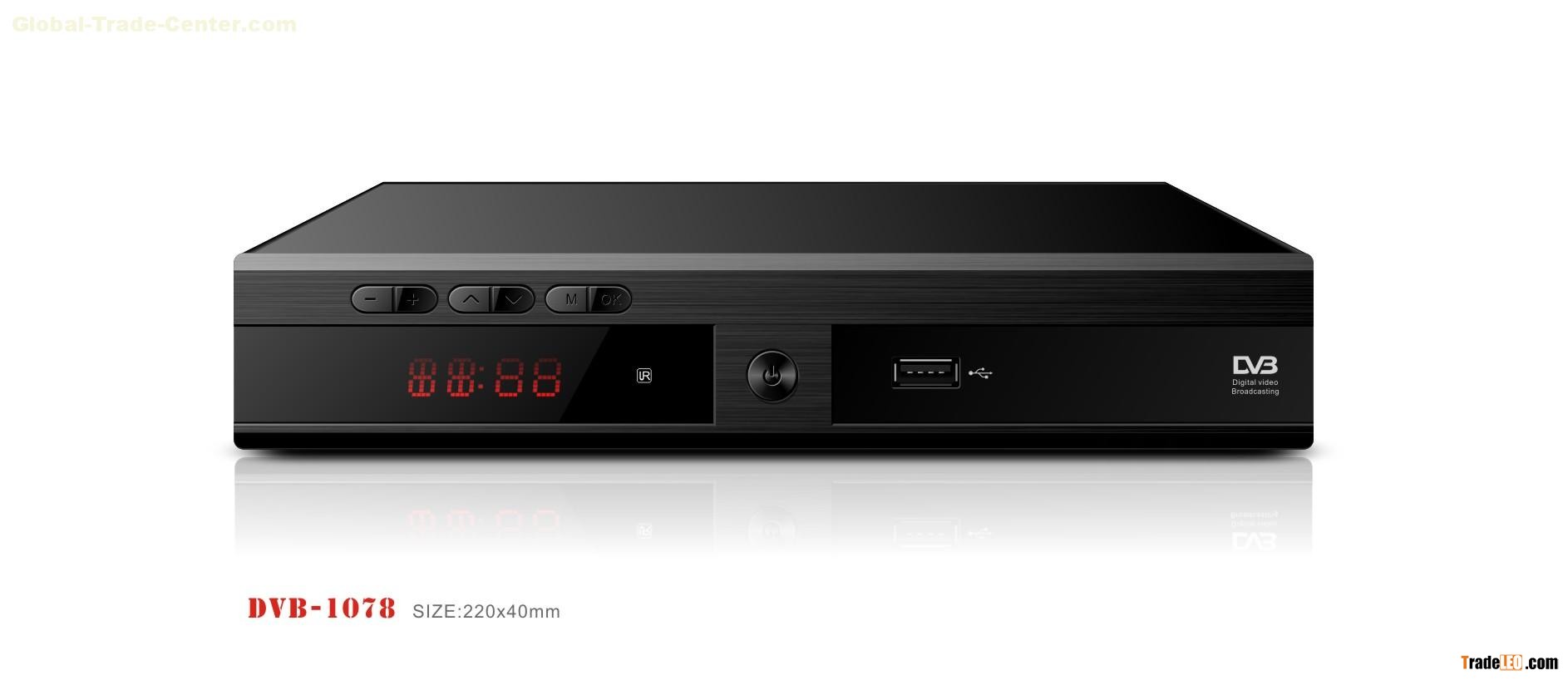

Product specification

1.       Fully supports HD DVB T2/T,MPEG2, MPEG4,HD H.264,1080i,1080p

2.       HDMI for multimedia play, standard and high definition output for DVB-T2

3.       Auto and manually scan all available TV and radio channels

4.       Aspect ratio 16:9 and 4:3

5.       HDMI, YPbPr, RCA (AV), Coaxial ,USB output

6.       Multi-language subtitle output supported

7.       Powerful and highly effective 7-day EPG function

8.       Supports teletext

9.       Parental lock

10.   Timeshift function

11.   USB2.0 PVR & playback

12.   Stores up to 1,000 programs and keeps in memory while power-off

13.   Photo: JPEG, BMP, PNG

14.   Audio: WMA, MP3, AAC (.wma, .mp3, m4a)

15.   Video: MPEG1, MPEG2, MPEG4, H264

16.   Motion JPEG  (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp)

17.   NTFS, FAT32, FAT16

18.   JPEG/Audio combo playback

19.   Automatic PAL/NTSC conversion

System Resources
- CPU/MPU/Mainchip:  MSD7T01 (MIPS 34K@600MHz)
- Flash memory:  32Mbit
- DDR-2 SDRAM:  512Mbit

Demultiplexer
- Standard: ISO/IEC 13818-1
- Input Max. Bit Stream Rate: 120Mbps

Tuner
- Maxlinear high sensitive and reliable silicon tuner: MXL201
- Input Frequency Range : VHF: 174~230MHz, UHF: 470~862MHz
- IF Bandwidth : 6,7 or 8MHz
- Input Signal Level : -85dBm ~ -20dBm
- RF Input Connector: D-type connector(RF IN)
- Input impedance : 75 ohm

De-modulator
- Modulation mode : OFDM (Orthogonal Frequency Division Multiplexing)
- Demodulation :256QAM, 64QAM, 16QAM and QPSK
- Guard interval :  1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
- FEC Code rates:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Connector
- RF Input: 1 x IEC169-2, Female
- RF Output: 1 x IEC169-2, Male
- Digital Output: 1 x HDMI
- Analog Output: 1 x RCA
- Digital Autio Output: 1 x Coaxial
- USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting

Environmental Conditions
- Input Voltage: AC200 ~ 240V

- Power Consumption: Max. 5W

- Stand-by Power Consumption: <0.5W
- Operating temperature: 0 ~ 45°C
