Nylon and Polyester 13.56 MHz Passive RFID Laundry Tags for Hotel Linen Management

The waterproof nylon and polyester 13.56 MHz Passive RFID tags are designed for RFID laundry and linen management. They can support varying operating temperature ranges, hot water temperature and immersion time dependent. Up to 50 tags per second can be detected with average read range of 6-12 cm. Tags offered in different sizes with one, two or no hole and can be affixed by sewing, gluing, be pinned or tied on.

Applications:

Garment, Hotel laundry management and tracking, textile rental, dry cleaning, towel and bed sheet laundry tracking

Specifications:

1.      Type: Contactless R/W

2.      Operating Frequency: HF (13.56MHz)

3.      IC Available at 13.56MHz: I-CODE(ISO 15693-3), Mifare® Ultralight (ISO 14443A), Mifare®1K  (ISO 14443A), Mifare®4K  (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

4.      Available IC Data Sheets as PDF Download

          I-Code (13.56 MHz, 1024 bit, R/W, ISO/IEC 15693) –

http://www.smart-rfid-tag.com/I_Code_Sli_Data_Sheet.pdf

Mifare 1 S50 (13.56 MHz, 1K Byte, R/W, ISO 14443 A) –

http://www.smart-rfid-tag.com/MF1_S50_Data_Sheet.pdf

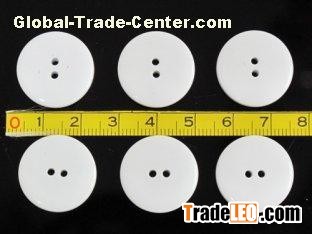

5.      Size: Dia.16/20/22/25 mm

6.      Reading Distance: 5cm ~ 30cm (Reader Dependant)

7.      Simultaneous Identification of Tags: Up to 50 tags per second

8.      Material: Nylon / Polyester / PPS / EPOXY

9.      Operating Temperature: -25ºC to 120ºC | +150ºC total 50 Hrs | +200ºC total 20 Sec

10.    Storage Temperature:-25ºC to 90ºC

11.    Typical programming cycles at +25ºC: 100, 000

12.    Typical Data retention time at +55ºC: > 10 years

Competitive Advantage:

1.      Waterproof IP 68 (condition: water pressure 45bar, 10h)

2.      Size: Dia.16/20/22/25 mm

3.      Simultaneous Identification of Tags: Up to 50 tags per second

4.      Data retention time at +55ºC: > 10 years

5.      100, 000 times reading & writing

6.      Exceptional temperature and harsh environmental performance
