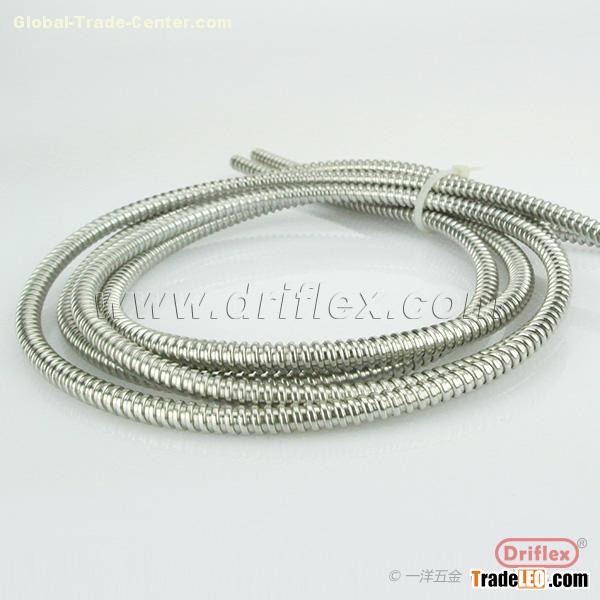

Model: FM-12ISS
Description:

1. Material: Stainless Steel
2. Construction: Interlock
3. Surface finish:Coating, Coating+braiding grinding polishing

4. Coating material: Oil resistant, Abrasion resistant, Low temperature resistant

5. Can add PVC coating or wire braiding on the flexible metal tube to achieve effect of water proof and explosion proof




Part No

Normial Size

Inner Diameter

mm

Outside Diameter

mm

O.D After PVC Coated

Length Of Each Roll


Interlocked

Squarelocked

M

FM-10ISS 3/8" 12.5 15.7 18.0 16.6 50
FM-11ISS 1/2" 15.7 19.1 21.3 20.0 50
FM-12ISS 3/4" 20.8 24.3 26.7 25.5 50
FM-13ISS 1" 26.0 30.0 33.2 31.6 30
FM-14ISS 1-1/4" 35.0 40.0 42.2 42.0 30
FM-15ISS 1-1/2" 40.0 45.0 48.0 47.0 20
FM-16ISS 2" 51.0 56.0 59.6 59.0 10
