1.2  Material



Plica tube LZ-4 basic type, the outside layer is galvanized steel strip,



and the middle layer is the steel strip, the inner layer is the water-tolerant electrical paper.


Mainly used in the dry place for indoor decoration, fire control, lighting, instrumentation, and electrical equipment.



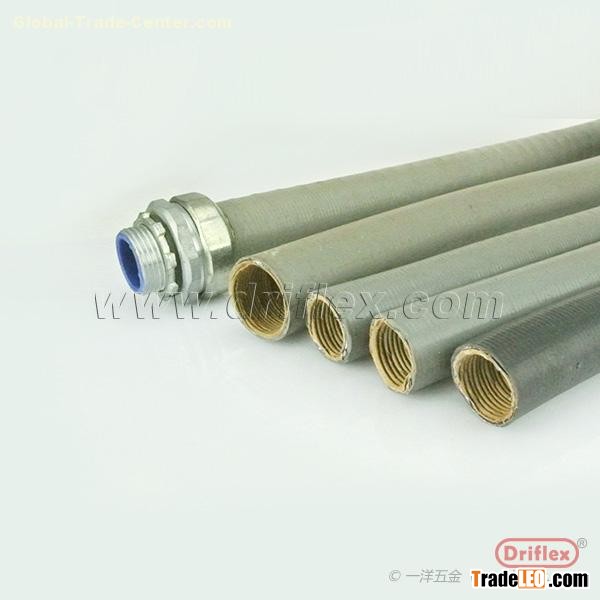

lead coated steel +Electrical paper + lead coated steel conduit

1.3 Features



Standards by JG/T3053-1998




1.  The conduit 12#, 15#, 17# allows two joints per roll (3 pieces).



    The conduit 24#, 30#, 38#, 50# allows one joints per roll (2 pieces),



    the bottom line of first part can not less than 10M.




2. The size of flexible metallic conduit matches the inner diameter of steel tube.



  lead coated steel +Electrical paper + lead coated steel conduit

1.4 Applications





              General wiring for OEM applications



               Low fire hazard applications



              Underfloor wiring of office buildings



   lead coated steel +Electrical paper + lead coated steel conduit

Special Applications:





Stainless Steel (SUS304, SUS 430)  and Brass type of FM flexible conduits are available for applications,



such as instrumentation and security, etc.



  lead coated steel +Electrical paper + lead coated steel conduit



1.5 Specifications





No.
I.D
mm

O.D
mm

O.D. Tolerance
mm

Length/roll
m
Relevant Conduit Relevant Conduit
for Electric Wire
mm inch mm inch
12# 11.4 16.1 ±0.2 50 8 1/4 13 1/2
15# 14.1 19.0 ±0.2 50 10 3/8 16 5/8
17# 16.6 21.5 ±0.2 50 15 1/2 19 3/4
24# 23.8 28.8 ±0.2 25 20 3/4 25 1
30# 29.3 34.9 ±0.2 25 25 1 32 11/4
38# 37.1 42.9 ±0.4 25 32 11/4 38 11/2
50# 49.1 54.9 ±0.4 25 40 11/2 51 2
63# 62.6 69.1 ±0.6 10 50 2 64 21/2
76# 76.0 82.9 ±0.6 10 70 21/2 76 3
83# 81.0 88.1 ±0.6 10 80 3
101# 100.2 107.3 ±0.6 5 100 4
